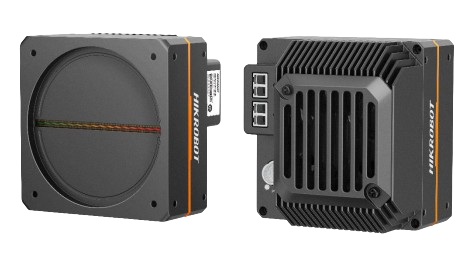

MV-CL166-91F2C, Line Scan Camera
MV-CL166-91F2C camera adopts 16384 × 12 RGB true color CMOS sensor and supports transmission protocol of XoFLink, and its max. line rate reaches 47.3 kHz. It adopts multiple ISP image processing technologies.
Features:
- Adopts multiple ISP features, such as Gamma correction, flat field correction, LUT, black level offset, noise reduction, etc.
- Supports RGB true color, multiple exposure and acquisition methods, and image modes of 1-line, 2-TDI, 3-TDI, and 4-TDI.
- Features a bi-directional, configurable I/O hardware design.
- Supports the XoFLink transmission protocol with a maximum line rate of 47.3 kHz.
- Compact design with flexible installation options.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-CL166-91F2C - Description

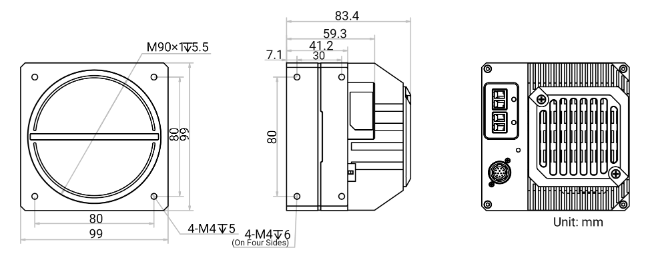

Dimension
MV-CL166-91F2C - Specifications
| Resolution | 16K |
| Data interface | 2LC |
| Power supply | 24 VDC |
| Mono/Color | Color |
| Lens mount | F-mount |
| M90 x 1 | |
| Ingress protection | IP 40 |
| Min Working Temperature | -20 °C |
| Max Working Temperature | 55 °C |
| Client software | MVS |
MV-CL166-91F2C - Downloads
MV-CL166-91F2C Datasheet |
MV-CL166-91F2C - Similar Products
- Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc.
- Provides one XoF fiber port with 10 GB bandwidth.
- Supports multiple exposure and acquisition methods with max. line rate of 100 kHz.
- Features a bi-directional, configurable I/O hardware design.
- Compact design and flexible installation.
| Resolution | 4K |
| Data interface | 2LC |
| Power supply | 12 VDC - 24 VDC |
| Mono/Color | Color |
| Lens mount | F-mount, M42 x 1.0 |
| Ingress protection | IP 40 |
