MV-CL084-91F2M, Line Scan Camera
MV-CL084-91F2M camera adopts 8192 × 4 CMOS sensor and supports transmission protocol of XoFLink, and its max. line rate reaches 200 kHz. It supports multi-light control, multi-exposure, TDI, etc.
Features:
- Supports multi-light control, multi-exposure, TDI, etc.
- Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc.
- Provides dual XoF fiber ports with high-speed.
- Features a bi-directional, configurable I/O hardware design.
- Compact design and flexible installation.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-CL084-91F2M - Description

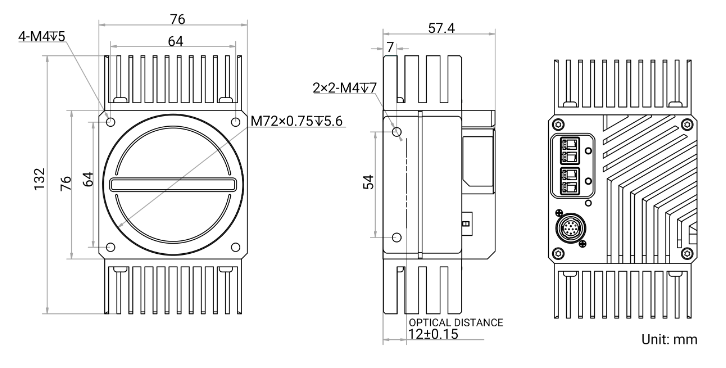

Dimension
MV-CL084-91F2M - Specifications
| Resolution | 8K |
| Data interface | 2LC |
| Power supply | 12 VDC - 24 VDC |
| Mono/Color | Mono |
| Lens mount | F-mount |
| M72 x 0.75 | |
| Ingress protection | IP 40 |
| Min Working Temperature | -20 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
MV-CL084-91F2M - Downloads
MV-CL084-91F2M Datasheet |
MV-CL084-91F2M - Similar Products
- Adopts multiple ISP features, such as Gamma correction, flat field correction, LUT, black level offset, etc.
- Provides a 20G fiber port for data transmission.
- Supports multiple exposure and acquisition methods, including 2-TDI with a maximum line rate of 200 kHz.
- Features a bi-directional, configurable I/O hardware design.
- Compact design with flexible installation options.
| Resolution | 8K |
| Data interface | 2LC |
| Power supply | 12 VDC - 24 VDC |
| Mono/Color | Mono |
| Lens mount | F-mount, M72 x 0.75 |
| Ingress protection | IP 40 |
- Adopts multiple ISP features, such as Gamma correction, flat field correction, LUT, black level offset, etc.
- Provides one XoF fiber port with 10 GB bandwidth.
- Supports multiple exposure and acquisition methods, including 2-TDI with a maximum line rate of 146 kHz.
- Features a bi-directional, configurable I/O hardware design.
- Compact design with flexible installation options.
| Resolution | 2K |
| Data interface | 2LC |
| Power supply | 12 VDC - 24 VDC |
| Mono/Color | Mono |
| Lens mount | F-mount, M72 x 0.75 |
| Ingress protection | IP 40 |
- Supports high bandwidth image compression mode, TDI, trigger-width exposure, etc.
- Rich ISP image algorithms and supports manual adjustment for Gamma correction, flat field correction, LUT, black level, etc.
- Adopts bi-directional I/O hardware design.
- Compact design and flexible installation.
- Compatible with GigE Vision V2.0 and GenlCam standard.
| Resolution | 8K |
| Data interface | Gigabit Ethernet, Fast Ethernet |
| Power supply | 12 VDC - 24 VDC |
| Mono/Color | Mono |
| Lens mount | C-mount, F-mount, M72 x 0.75 |
| Ingress protection | IP 40 |
- Adopts multiple ISP features, such as Gamma correction, flat field correction, LUT, black level offset, etc.
- Provides a 20G fiber port for data transmission with a maximum line rate of 66.6 kHz.
- Supports RGB true color, as well as multiple exposure and acquisition methods.
- Features a bi-directional, configurable I/O hardware design.
- Compact design with flexible installation options.
| Resolution | 8K |
| Data interface | 2LC |
| Power supply | 12 VDC - 24 VDC |
| Mono/Color | Color |
| Lens mount | F-mount, M72 x 0.75 |
| Ingress protection | IP 40 |
- Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc.
- Provides dual XoF fiber connectors with 20 GB bandwidth.
- Supports multiple exposure, acquisition methods and image mode of 1-Line and 2-TDI.
- Features a bi-directional, configurable I/O hardware design.
- Compact design and flexible installation.
| Resolution | 16K |
| Data interface | 2LC |
| Power supply | 12 VDC - 24 VDC |
| Mono/Color | Mono |
| Lens mount | M72 x 0.75 |
| Ingress protection | IP 40 |
