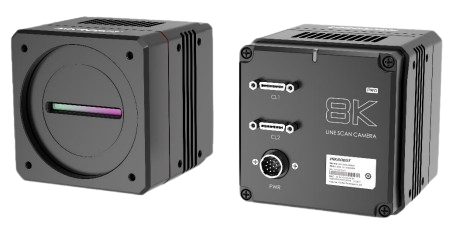

MV-CL084-91CM-PRO, Line Scan Camera
MV-CL084-91CM-PRO uses Camera Link interface to transmit images, and its max. line rate reaches 100 kHz. It supports multiple lights control function and different image modes, and is applicable to printing, panel, new energy, and other industries.
Features:
- Supports configuration modes of Base, Medium, Full, and 80-bit via the Camera Link interface, as well as the TDI function to select different image modes.
- Adopts multiple light control functions, exposure time and gain adjustments, PRNUC correction, LUT, Gamma correction, etc.
- Compatible with the Camera Link protocol and the GenICam standard.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-CL084-91CM-PRO - Description

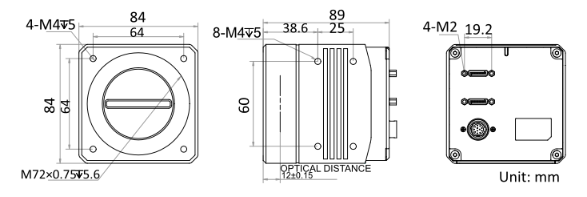

Dimension
MV-CL084-91CM-PRO - Specifications
| Resolution | 8K |
| Data interface | Camera Link |
| Power supply | 24 VDC |
| Mono/Color | Mono |
| Lens mount | F-mount |
| M72 x 0.75 | |
| Ingress protection | IP 40 |
| Min Working Temperature | -20 °C |
| Max Working Temperature | 60 °C |
| Client software | MVS |
| Frame grabber | |
| Certification | CE |
| KC | |
| FCC | |
| RoHS |
MV-CL084-91CM-PRO - Downloads
MV-CL084-91CM-PRO Datasheet |
