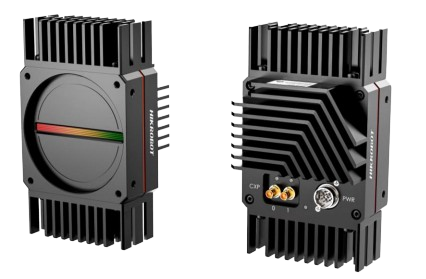

MV-CL084-91Y2M, Line Scan Camera
MV-CL084-91Y2M adopts 8192 × 4 CMOS sensor and supports transmission via CoaXPress interfaces. Its max. line rate reaches 200 kHz. It adopts multiple ISP image processing technologies, featured with high speed, high accuracy, and high performance.
Features:
- Supports multi-light control, multi-exposure, TDI, etc.
- Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc.
- Provides CXP-12 interfaces to transmit data.
- Supports multiple exposure and acquisition methods.
- Compact design and flexible installation.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-CL084-91Y2M - Description

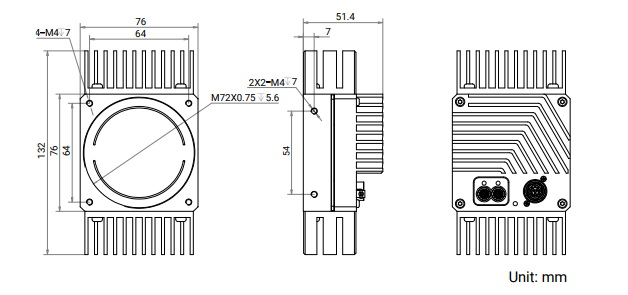

Dimension
MV-CL084-91Y2M - Specifications
| Resolution | 4K |
| Data interface | CoaXPress |
| Power supply | 12 VDC - 24 VDC |
| PoCXP | |
| Mono/Color | Mono |
| Lens mount | F-mount |
| M72 x 0.75 | |
| Ingress protection | IP 40 |
| Min Working Temperature | -20 °C |
| Max Working Temperature | 50 °C |
| Client software | MVS |
MV-CL084-91Y2M - Downloads
MV-CL084-91Y2M Datasheet |
