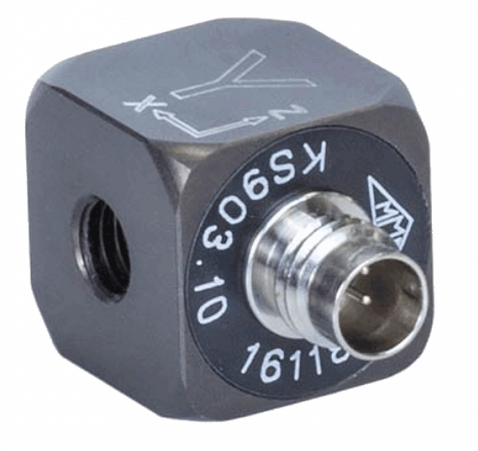

KS903B100, Triaxial Accelerometer
Compact triaxial accelerometer designed for general applications and modal analysis.
Features:
- Small dimensions
- Excellent phase response
- High resolution
- Low temperature coefficient
- Includes electronic data sheet (TEDS; IEEE 1451.4; Template 25 w. DS2431)
- Well suited for modal and structural analysis
- Two sensitivity versions (10 and 100 mV/g)
Manufacturer: MMF
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
KS903B100 - Description
Triaxial accelerometer in compact design for general applications and modal analysis.
Contains an electronic data sheet (TEDS).

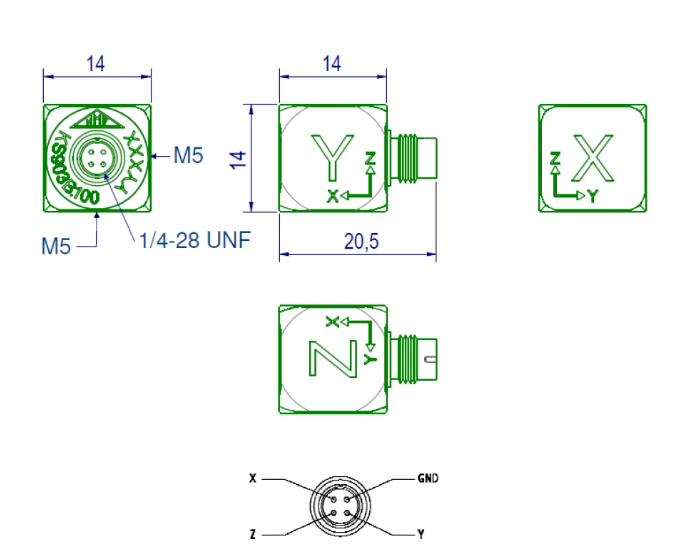

KS903B100 - Specifications
| Type | Voltage Mode (IEPE) |
| Material | Aluminum |
| Mounting | Adhesive |
| Connection | 1/4-28 UNF |
| 4 pins | |
| Min Temperature | -30 °C |
| Max Temperature | 100 °C |
| Lower frequency limit (3 dB) | 0.15 Hz |
| Upper frequency limit (3 dB) | 7 kHz |
| 12 kHz |
KS903B100 - Models & Accessories

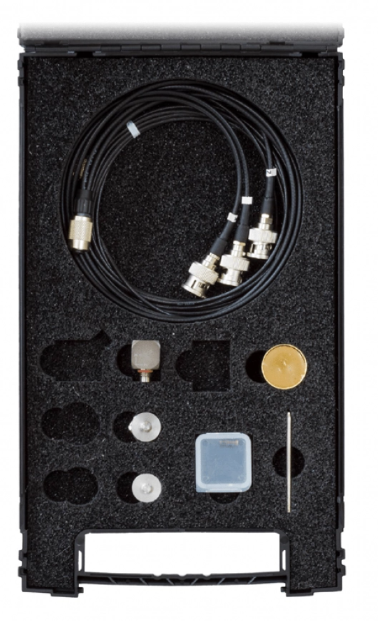

Accessories
| 003 | Stud bolt M5 x 8 |
| 029 | Adhesive pad, insulating, M5 (male) |
| 034-B711f-BNC: | Adapter cable from Binder 711 to 3 BNC plugs, 0.5 m |
| 038 | Instant glue |
| 045 | Stud adapter M5 (male) / UNF 10-32 (male) |
| 046 | Stud adapter M5 (male) / 1/4″-28 (male) |
| 091-CMR-B711-3 | IEPE cable for triaxial accelerometers with 1/4″-28 UNF and Binder 711 connectors |
| 141 | Adapter for measurements with accelerometers on curved surfaces |
| 143 | Hand-held adapter for measurements with accelerometers with M5 attachment |
| 429 | Adhesive pad SW12, insulating, M5 threaded hole. |
| 708 | Rare-earth magnetic base, small, M5 (male) |
| M208A | 8-channel IEPE conditioner |
| M29 | IEPE supply module |
| M72A3 | Charge Amplifier / IEPE Amplifier |
KS903B100 - Downloads
KS903B100 Datasheet |
