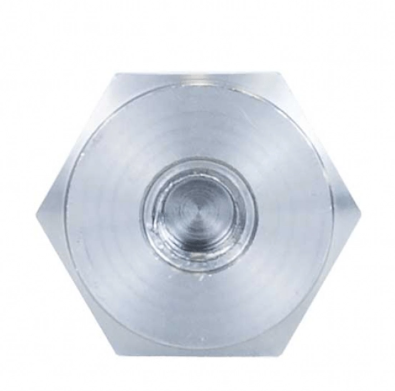

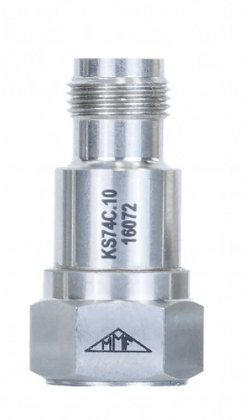

KS74C10, Industrial Accelerometer
These piezoelectric vibration transducers are designed for harsh industrial environments.
Features:
- Low weight
- With insulated base avoiding ground loop problems
- Rugged stainless steel case
- Particularly low temperature coefficient
- Two sensitivity versions (10 and 100 mV/g)
Manufacturer: MMF
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
KS74C10 - Description
These piezoelectric vibration transducers are designed for harsh industrial environments. They feature protection against dust and water, along with insulated mounting bases to prevent ground loops that can introduce noise into the sensor signal, particularly near high-power equipment.
KS74C10 - Specifications
| Type | Voltage Mode (IEPE) |
| Material | Stainless Steel |
| Mounting | M5 Thread |
| Connection | Axial |
| TNC | |
| Min Temperature | -30 °C |
| Max Temperature | 130 °C |
| Ingress Protection | IP64 |
| Lower frequency limit (3 dB) | 0.12 Hz |
| Upper frequency limit (3 dB) | 21 kHz |
KS74C10 - Models & Accessories
Accessories
| 001 | Hand-held probe M5 (male) For rotation speed and angle measurement |
| 003 | Stud bolt M5 x 8 |
| 008 | Rare-earth magnetic base, M5 (male) |
| 010-TNC-BNC-1.5 | low noise, TNC / BNC, 1.5 m, Ø 2,7 mm, 120 °C |
| 029 | Adhesive pad, insulating, M5 (male) |
| 030 | Triaxial mounting cube 3 x M5 |
| 045 | Stud adapter M5 (male) / UNF 10-32 (male) |
| 046 | Stud adapter M5 (male) / 1/4″-28 (male) |
| M14 | Vibration monitoring |
| M29 | IEPE supply module |
KS74C10 - Downloads
KS74C10 Datasheet |
