KSI84D, Vibration Displacement Sensor
The KSI84D Vibration Displacement Sensor delivers peak-to-peak measurements with a 4-20 mA output, ideal for direct connection to control systems in harsh environments.
Features:
- Peak-to-peak output with 4-20 mA
- Galvanically insulated for safety
- Compact, rugged, and IP68 waterproof design
- Protected against false polarization and overvoltage
- Double shielded for EMI protection

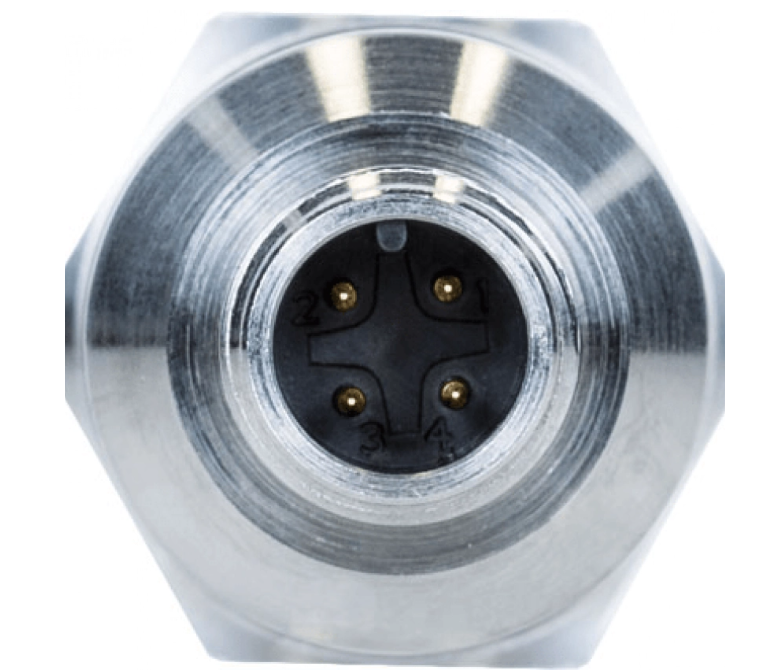

- Easy connection via M12 connector
- Ideal for vibration conveyors, screens, and separators
- Available in different measurement ranges
- Ground insulated with loop power operation
Manufacturer: MMF
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
KSI84D - Description
This Vibration Displacement Sensor is engineered to provide highly accurate peak-to-peak measurements, directly connecting to PLCs, panel meters, and other standard control systems. The sensor's compact and robust design is complemented by its galvanic insulation, ensuring optimal safety and reliability in harsh environments. Designed for applications such as vibration conveyors, screens, and separators, the sensor offers versatile measurement ranges and is protected against false polarization, overvoltage, and electromagnetic interference (EMI) with a double-shielded case. The M12 connector allows for quick, easy, and cost-effective installation, making this sensor a reliable solution for a wide range of industrial applications.
KSI84D - Specifications
| Full Scale | 10 mm |
| 12.7 mm | |
| 20 mm | |
| 25.4 mm | |
| 40 mm | |
| 50.8 mm | |
| Material | Stainless Steel |

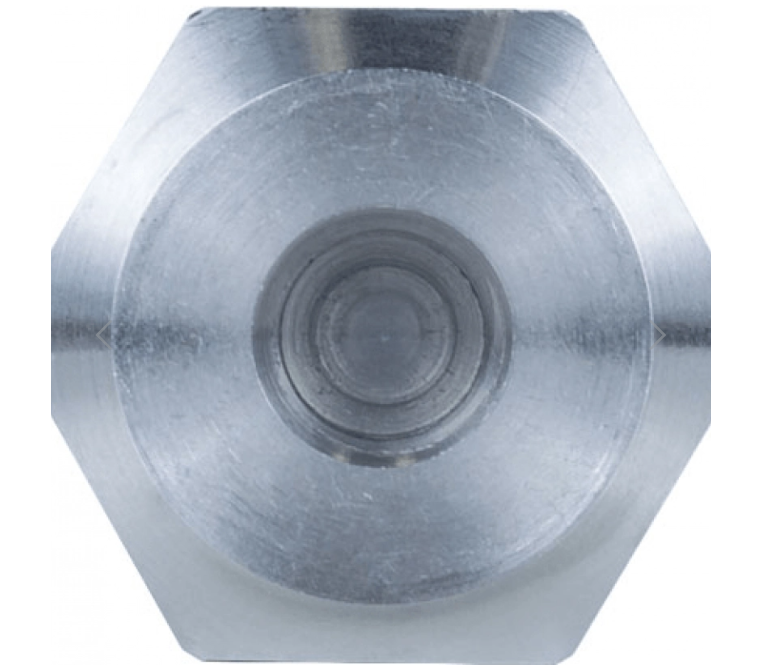

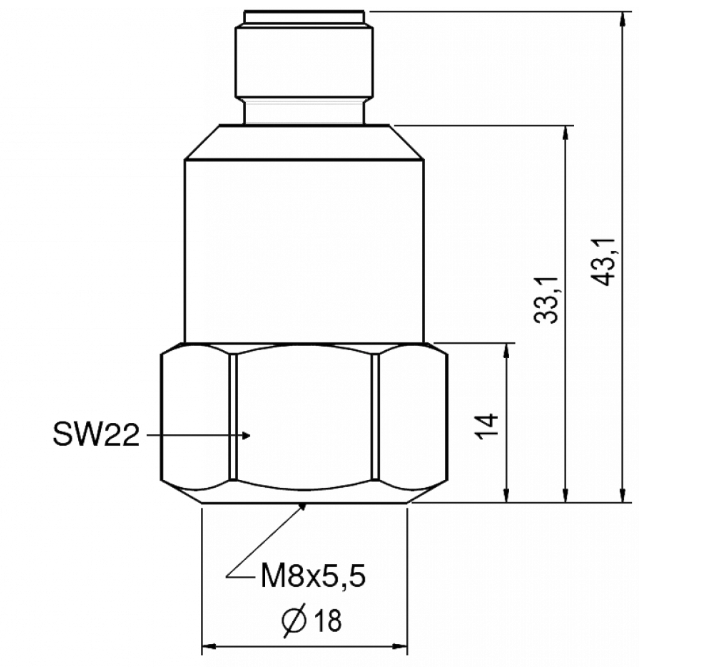

| Mounting | M8 Thread |
| Connection | Binder 713 |
| M12 | |
| Min Temperature | -40 °C |
| Max Temperature | 100 °C |
| Ingress Protection | IP68 |
| Lower frequency limit (3 dB) | 3 Hz |
| Upper frequency limit (3 dB) | 0.3 kHz |
KSI84D - Models & Accessories
Models
| KSI84D-3-300-10 | Range 10mm |
| KSI84D-3-300-12 | Range 12,7mm |
| KSI84D-3-300-20 | Range 20mm |
| KSI84D-3-300-25 | Range 25,4mm |
| KSI84D-3-300-40 | Range 40mm |
| KSI84D-3-300-50 | Range 50,8mm |
Accessories
| 043 | Stud bolt M8 x 10 |
| 229 | Adhesive pad, stainless steel, M8 (male) |
| 208 | Rare-earth magnetic base, M8 (male) |
| 230 | Triaxial mounting cube 3 x M8 |
| 080G | Plug Binder 713, straight |
| 080W | Plug Binder 713, angled |
| 082-B713G-PIG-5 | Cable for KSI84xx; 5 m; Binder 713; straight; female to pig tail; 80 °C; D5 |
| 082-B713W-PIG-5 | Cable for KSI84xx; 5 m; Binder 713; angled; female to pig tail; 80 °C; D5 |
KSI84D - Downloads
KSI84D Datasheet |
