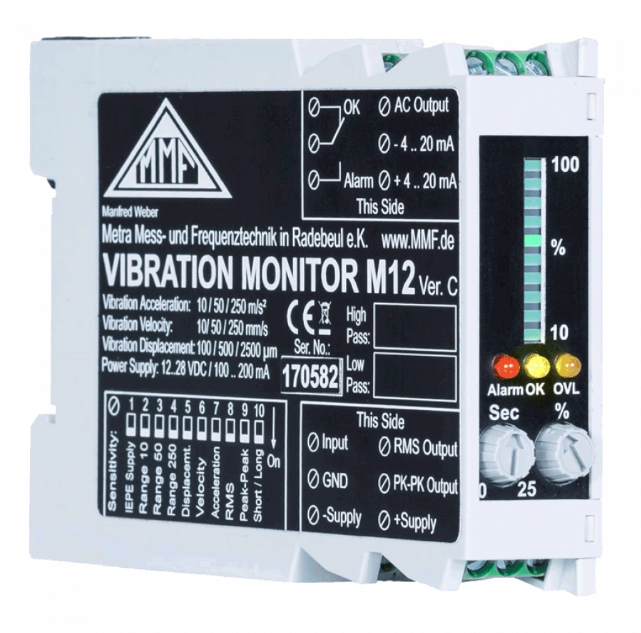

M12, Universal Vibration Monitor
The M12C Universal Vibration Monitor is designed for assessing vibration velocity and severity in rotating machinery according to ISO standards, as well as monitoring reciprocating engines and various industrial equipment such as pumps, compressors,
Features:
- Highly versatile, capable of monitoring vibration acceleration, velocity, and displacement through single and double integration.
- Measures true RMS and peak-to-peak values.
- Offers three selectable measuring ranges.
- Supports plug-in high-pass and low-pass filter modules.
- Features a relay output with adjustable thresholds and alarm delays to minimize false alarms.
- Provides an insulated current loop output (4-20 mA) and DC output (0-10 V) for RMS and peak-to-peak signals.
- AC output available for signal analyzers or scopes, with options for filtering or integration.
- Includes an LED bar graph display for real-time monitoring of vibration levels and thresholds.
- Easily attaches to a 35 mm DIN rail and connects via screw terminal blocks.
- Equipped with self-test functions for power supply and transducer operation, along with an overload indicator.
- Requires an external DC power supply (12 to 28 V).
Manufacturer: MMF
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
M12 - Description
Monitors unbalance vibration in accordance with ISO 10816 / ISO 20816 standards.
Tracks bearing vibration effectively.
Compatible with IEPE sensors.

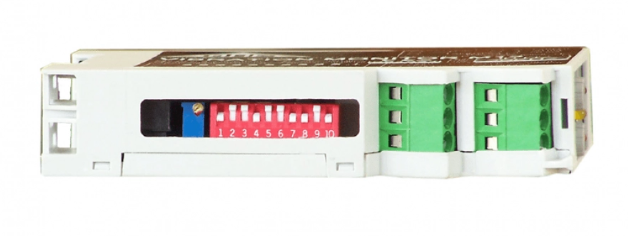

Measurement and monitoring modes can be selected using DIP switches.
Supports plug-in high-pass and low-pass filter modules.
Capable of RMS and peak monitoring.
Features an LED level bar graph display on the front panel.
Includes a relay output with adjustable threshold and delay settings.
Provides an isolated 4-20 mA current loop output.
Offers DC outputs for both RMS and peak values.
M12 - Specifications
| Input Type | AC voltage |
| IEPE | |
| IEPE+AC | |
| # of Inputs | 1 |
| Output Type | 4 - 20 mA |
| Supply Power | 12 - 28 V DC |
| Min Temperature | -20°C |
| Max Temperature | 55°C |
M12 - Models & Accessories
Accessories
| FB2 | Plug-in low pass filters |
| FB3 | Plug-in high pass filters |
| M12DIS | 4 .. 20 mA display module |
M12 - Downloads
M12 Datasheet |
