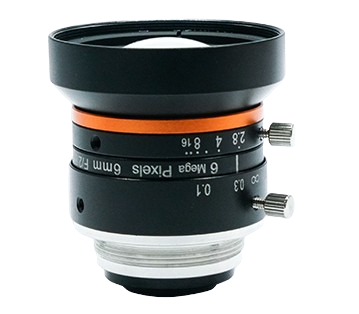

MVL-HF0628M-6MPE, 6MP FA LENS
HF-E series FA Lens is designed specifically for machine vision applications, delivering high resolution and exceptional image quality. Making it an excellent choice for industrial cameras and various machine vision tasks.
Features:
- Enhanced image clarity and contrast ratio
- Minimal distortion with improved relative illumination
- Excellent optical performance at ultra-short working distances
- Compact design for easy device integration
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-HF0628M-6MPE - Description

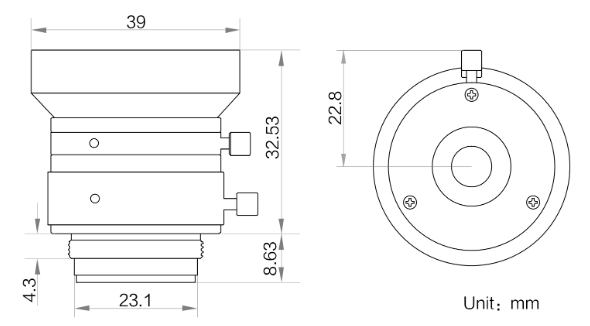

Dimension
MVL-HF0628M-6MPE - Specifications
| Focal length | 6 mm |
| Image size | 9 mm(1/1.8’’) |
| Filter Thread | M37.5 × P0.5 |
| Distortion | -0.103% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-HF0628M-6MPE - Downloads
MVL-HF0628M-6MPE Datasheet |
