MVL-HF0828M-6MPE, 6MP FA LENS
HF-E series FA Lens is specially optimized for machine vision applications, offering high resolution, exceptional image quality, and excellent light transmittance with reliable stability.
Features:
- Higher image clarity and contrast ratio
- Ultra-low distortion and higher relative illumination rate
- Good optical performance at ultra-short working distance
- Compact design, convenient for device integration
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-HF0828M-6MPE - Description

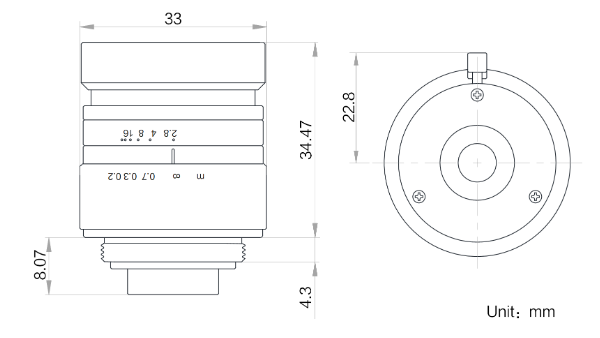

Dimension
MVL-HF0828M-6MPE - Specifications
| Focal length | 8 mm |
| Image size | 9 mm(1/1.8’’) |
| Filter Thread | M30.5 × P0.5 |
| Distortion | 0.049% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-HF0828M-6MPE - Downloads
MVL-HF0828M-6MPE Datasheet |
MVL-HF0828M-6MPE - Similar Products
- Ensures consistent image clarity across the frame
- Achieves enhanced relative illumination
- Optimizes image quality for color cameras
- Delivers impressive optical performance
- Offers excellent vibration resistance and reliable performance in high and low temperatures

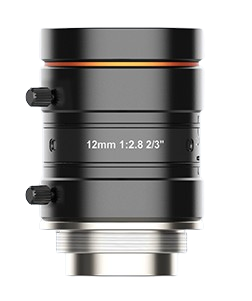

| Focal length | 12 mm |
| Image size | 11 mm (2/3") |
| Filter Thread | M30.5 × P0.5 |
| Distortion | 0.28% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
- Enhanced image clarity and contrast ratio
- Ultra-low distortion with improved relative illumination
- Excellent optical performance at very short working distances
- Compact design for easy device integration

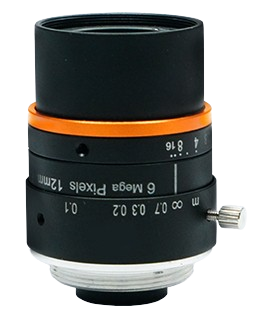

| Focal length | 12 mm |
