MVL-HF1224M-10MP, 10MP FA LENS
HF-P series FA Lens is optimized for machine vision, providing high resolution, excellent image quality, and stability, with a fixed focal length, manual aperture, and compact design, making it ideal for industrial cameras.
Features:
- Ultra-high resolution and consistent image clarity
- Larger aperture for lower distortion and improved illumination
- Achromatic design for enhanced color camera performance
- Superior vibration resistance with pixel-level optical axis stability
- Reliable stability across high and low temperatures
- Multilayer, broadband coating for visible and near-infrared compatibility
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-HF1224M-10MP - Description

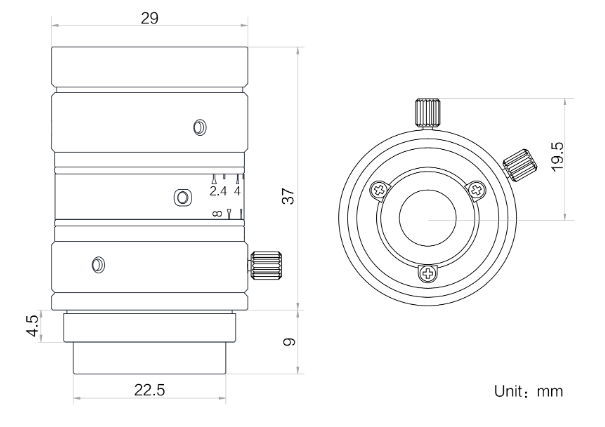

Dimension
MVL-HF1224M-10MP - Specifications
| Focal length | 12 mm |
| Image size | 9 mm(1/1.8’’) |
| Filter Thread | M27 × 0.5 |
| Distortion | 0.15% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-HF1224M-10MP - Downloads
MVL-HF1224M-10MP Datasheet |
MVL-HF1224M-10MP - Similar Products
- High resolution and consistency of image clarity
- Lower distortion and higher relative illumination rate
- Achromatic optical system design and better imaging performance with color camera
- Excellent performance at high and low temperature
- Good optical performance at ultra-short working distance
| Focal length | 16 mm |
| Image size | 11 mm (2/3") |
| Filter Thread | M27 × 0.5 |
| Distortion | 0.98% |
| Minimum Operation Distance | 0.2 m |
| Focus Control | Manual |
- Delivers consistent image clarity throughout
- Offers enhanced relative illumination rates
- Optimized for superior color performance in cameras
- Functions effectively across a wide temperature range
- Maintains clarity at very short working distances
| Focal length | 12 mm |
| Image size | 11 mm (2/3") |
| Filter Thread | M27 × 0.5 |
| Distortion | –0.16% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
- Ultra-high resolution and consistent image clarity
- Larger aperture for lower distortion and improved relative illumination
- Achromatic optical system for enhanced imaging with color cameras
- Excellent vibration resistance, with optical axis stability at the pixel level
- Reliable performance in high and low temperatures
- Multilayer, broadband coating suitable for visible and near-infrared applications

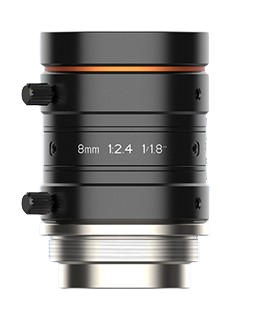

| Focal length | 8 mm |
| Image size | 9 mm(1/1.8’’) |
| Filter Thread | M27 × 0.5 |
| Distortion | -0.67% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
- Ultra high resolution and consistency of image clarity
- Bigger aperture, lower distortion and higher relative illumination rate
- Achromatic optical system design. Better imaging performance with color camera
- Excellent vibration resistance performance, optical axis shifting within pixel level
- Good stability at high and low temperature
- Multilayer and broadband coating design, compatible with visible and near-infrared applications

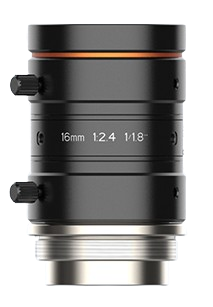

| Focal length | 16 mm |
| Image size | 9 mm(1/1.8’’) |
| Filter Thread | M27 × 0.5 |
| Distortion | -0.02% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
- Ensures consistent clarity throughout the image
- Achieves superior relative illumination
- Achromatic optical system design enhances image quality for color cameras
- Maintains strong optical quality
- Provides excellent vibration resistance and operates effectively in extreme temperatures

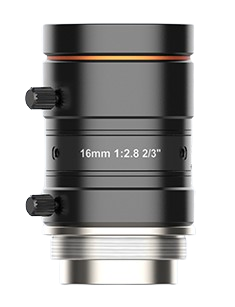

| Focal length | 16 mm |
