MVL-MF0824M-5MPE, 5MP FA LENS
MF-E series FA Lens is optimized for machine vision applications, offering high resolution, excellent image uniformity, high transmittance, and stability.
Features:
- High resolution with consistent image clarity
- Reduced distortion and improved relative illumination
- Achromatic optical design for enhanced color camera performance
- Reliable performance in high and low temperatures
- Excellent optical quality at very short working distances
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-MF0824M-5MPE - Description

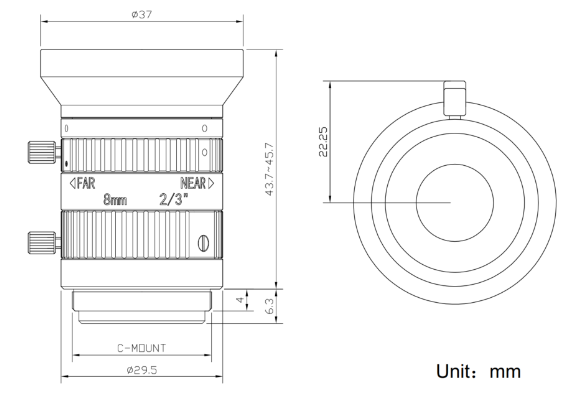

Dimension
MVL-MF0824M-5MPE - Specifications
| Focal length | 8 mm |
| Image size | 11 mm (2/3") |
| Filter Thread | M35.5 × 0.5 |
| Distortion | 2.03% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-MF0824M-5MPE - Downloads
MVL-MF0824M-5MPE Datasheet |
