MVL-MF1224M-5MPE, 5MP FA LENS
MF-E Series FA Lens is specifically designed for machine vision applications, providing high resolution, outstanding image uniformity, and excellent light transmittance and stability.
Features:
- Delivers consistent image clarity throughout
- Offers enhanced relative illumination rates
- Optimized for superior color performance in cameras
- Functions effectively across a wide temperature range
- Maintains clarity at very short working distances
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-MF1224M-5MPE - Description

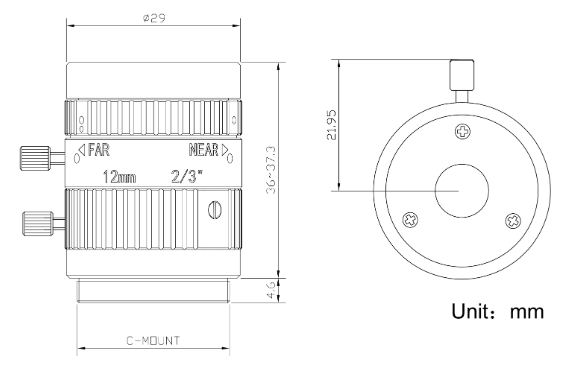

Dimension
MVL-MF1224M-5MPE - Specifications
| Focal length | 12 mm |
| Image size | 11 mm (2/3") |
| Filter Thread | M27 × 0.5 |
| Distortion | –0.16% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-MF1224M-5MPE - Downloads
MVL-MF 1224M-5MPE Datasheet |
