MVL-MF1228M-8MP, 8MP FA LENS
MF Series FA Lens is tailored for machine vision light sources and sensors, offering high resolution, superior image quality, excellent light transmittance, and reliable stability.
Features:
- Ensures consistent image clarity across the frame
- Achieves enhanced relative illumination
- Optimizes image quality for color cameras
- Delivers impressive optical performance
- Offers excellent vibration resistance and reliable performance in high and low temperatures
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-MF1228M-8MP - Description
Dimension
MVL-MF1228M-8MP - Specifications
| Focal length | 12 mm |
| Image size | 11 mm (2/3") |
| Filter Thread | M30.5 × P0.5 |
| Distortion | 0.28% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-MF1228M-8MP - Downloads
MVL-MF1228M-8MP Datasheet |
MVL-MF1228M-8MP - Similar Products
- Higher image clarity and contrast ratio
- Ultra-low distortion and higher relative illumination rate
- Good optical performance at ultra-short working distance
- Compact design, convenient for device integration
| Focal length | 8 mm |
| Image size | 9 mm(1/1.8’’) |
| Filter Thread | M30.5 × P0.5 |
| Distortion | 0.049% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
- Ultra-high resolution and consistency of image clarity
- Ultra-low distortion and higher relative illumination
- Achromatic optical system design, better image performance with color camera
- Supports ultra-short working distance with good optical performance
- Compact design, excellent vibration resistance and high and low temperature performance

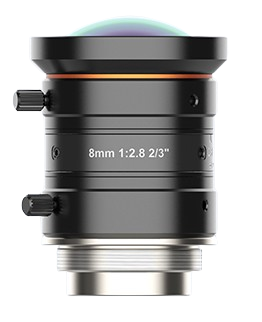

| Focal length | 8 mm |
| Image size | 11 mm (2/3") |
| Distortion | 0.28% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
| Mount | C-Mount |
- High resolution, high definition of the whole image
- Low distortion, high illumination relative
- Maximum image circle of 1.1"
- Support ultra-short working distance, maintaining excellent optical properties at different object distances

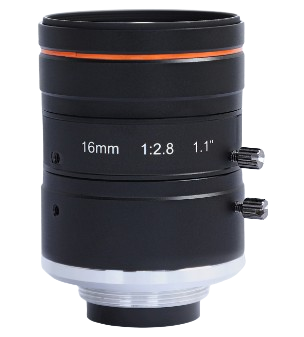

| Focal length | 16 mm |
| Image size | Φ17.6 mm |
| Filter Thread | M35.5 × 0.5 |
| Distortion | –1.30% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
- Ensures consistent image clarity
- Features a larger aperture for reduced distortion and improved relative illumination
- Optimizes imaging performance for color cameras
- Maintains excellent properties across various object distances
- Provides stability in extreme temperatures, with optical axis shifts limited to the pixel level
- Multilayer and broadband coating design, compatible with both visible and near-infrared applications
| Focal length | 16 mm |
| Image size | Φ19.3 mm(1.2’’) |
| Filter Thread | M40.5 × P0.5 |
| Distortion | 0.07% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
- Ensures high consistency in clarity at both the center and edges of the image
- 1.2" large target surface, F4 fixed iris, structurally stable
- Ultra low distortion, high peripheral brightness ratio
- Maintains excellent properties across various object distances
- Provides exceptional resistance to vibration, impact, and high and low temperature stability
| Focal length | 16 mm |
| Image size | Φ19.3 mm(1.2’’) |
| Filter Thread | M40.5 × P0.5 |
| Distortion | 0.04% |
| Minimum Operation Distance | 0.08 m |
| Focus Control | Manual |
