MVL-MF2528M-8MP, 8MP FA LENS
MF Series FA Lens is specifically designed for machine vision applications, delivering high resolution, exceptional image quality, outstanding light transmittance, and dependable stability.
Features:
- Ultra-high resolution and consistency of image clarity
- Ultra-low distortion and higher relative illumination
- Achromatic optical system design, better image performance with color camera
- Supports ultra-short working distance with good optical performance
- Compact design, excellent vibration resistance and high and low temperature performance
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-MF2528M-8MP - Description

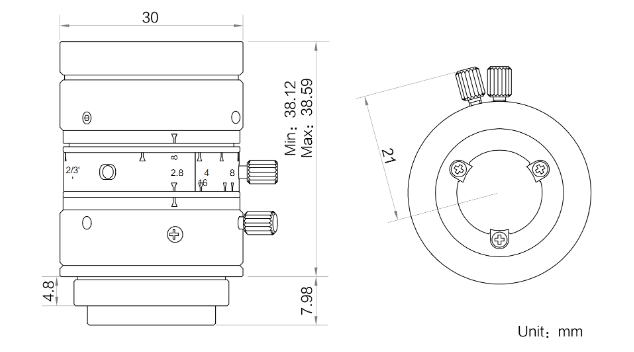

Dimension
MVL-MF2528M-8MP - Specifications
| Focal length | 25 mm |
| Image size | Φ11 mm(2/3’’) |
| Filter Thread | M27 × 0.5 |
| Distortion | 0.01% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-MF2528M-8MP - Downloads
MVL-MF2528M-8MP Datasheet |
