MVL-KF3528M-12MPE, 12MP FA LENS
KF-E Series FA Lens is specifically designed for machine vision applications, delivering high resolution, exceptional image quality, outstanding light transmittance, and dependable stability.
Features:
- Ensures consistent image clarity across the frame
- Achieves enhanced relative illumination
- Lower distortion
- Delivers impressive optical performance at different object distances
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-KF3528M-12MPE - Description

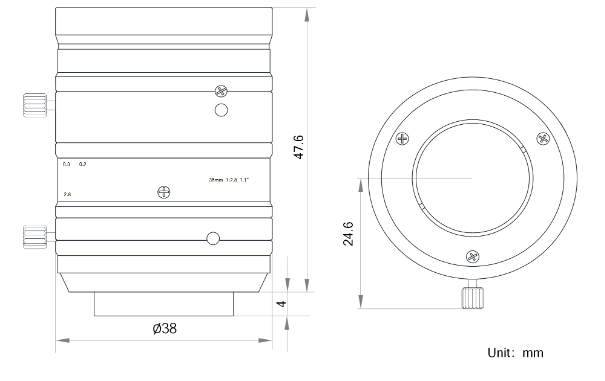

Dimension
MVL-KF3528M-12MPE - Specifications
| Focal length | 35 mm |
| Image size | Φ17.6 mm(1.1’’) |
| Filter Thread | M35.5 × 0.5 |
| Distortion | 0.02% |
| Minimum Operation Distance | 0.2 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-KF3528M-12MPE - Downloads
MVL-KF3528M-12MPE Datasheet |
