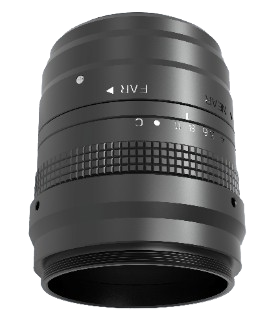

MVL-KF2528M-12MPE, 12MP FA LENS
KF-E Series FA Lens is specifically designed for machine vision applications, delivering high resolution, exceptional image quality, outstanding light transmittance, and dependable stability.
Features:
- Maintains consistent image clarity throughout
- Low distortion, improved relative illumination
- Super high image peripheral brightness ratio
- Ensures strong optical performance at different object distances
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-KF2528M-12MPE - Description

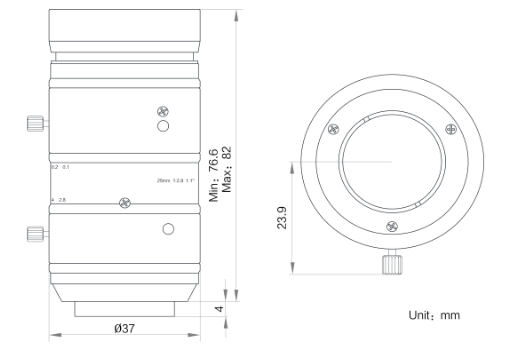

Dimension
MVL-KF2528M-12MPE - Specifications
| Focal length | 25 mm |
| Image size | Φ17.6 mm(1.1’’) |
| Filter Thread | M35.5 × 0.5 |
| Distortion | 0.1% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-KF2528M-12MPE - Downloads
MVL-KF2528M-12MPE Datasheet |
MVL-KF2528M-12MPE - Similar Products
- Ensures consistent image clarity across the frame
- Low distortion, achieves enhanced relative illumination
- Maximum image circle of 1.1"
- Delivers impressive optical performance at different object distances
| Focal length | 35 mm |
| Image size | Φ17.6 mm |
| Filter Thread | M35.5 × 0.5 |
| Distortion | –0.21% |
| Minimum Operation Distance | 0.2 m |
| Focus Control | Manual |
- Ultra-high resolution and consistency of image clarity
- Ultra-low distortion and higher relative illumination
- Maximum image circle of 1.1"
- Supports ultra-short working distance with good optical performance at different object distances
| Focal length | 25 mm |
| Image size | Φ17.6 mm |
| Filter Thread | M35.5 × 0.5 |
| Distortion | 0.40% |
| Minimum Operation Distance | 0.15 m |
| Focus Control | Manual |
- Ensures consistent image clarity across the frame
- Achieves enhanced relative illumination
- Lower distortion
- Delivers impressive optical performance at different object distances
| Focal length | 35 mm |
| Image size | Φ17.6 mm(1.1’’) |
| Filter Thread | M35.5 × 0.5 |
| Distortion | 0.02% |
| Minimum Operation Distance | 0.2 m |
| Focus Control | Manual |
- High resolution, high definition of the whole image
- Low distortion, high illumination relative
- Maximum image circle of 1.1"
- Support ultra-short working distance, maintaining excellent optical properties at different object distances
| Focal length | 16 mm |
| Image size | Φ17.6 mm |
| Filter Thread | M35.5 × 0.5 |
| Distortion | –1.30% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
- Excellent picture clarity and consistency
- Low distortion
- Maximum image circle Φ30mm, applicable to APS-C area scan and 4K 7μm line scan cameras
| Focal length | 28 mm |
| Image size | Φ30 mm |
| Filter Thread | M35.5 × 0.5 |
| Distortion | 0.1% |
| Focus Control | Manual |
| Mount | C-Mount |
