MVL-KF3528M-12MP, 12 MP FA LENS
KF series FA Lens are optimized for machine vision light sources and sensors, with high resolution, excellent image uniformity, high transmittance and good stability.
Features:
- Ensures consistent image clarity across the frame
- Low distortion, achieves enhanced relative illumination
- Maximum image circle of 1.1"
- Delivers impressive optical performance at different object distances
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-KF3528M-12MP - Description

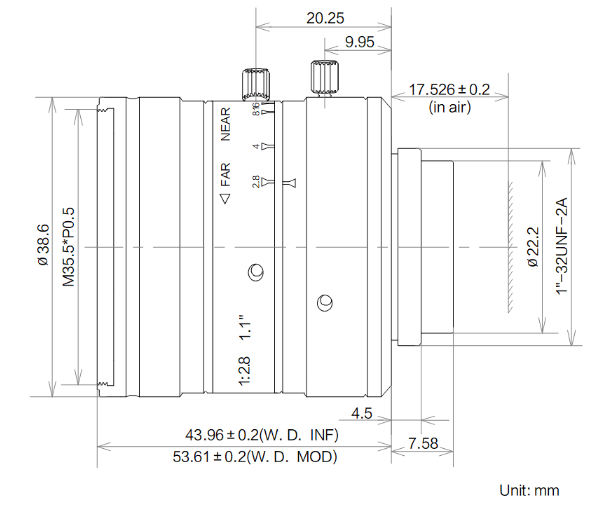

Dimension
MVL-KF3528M-12MP - Specifications
| Focal length | 35 mm |
| Image size | Φ17.6 mm |
| Filter Thread | M35.5 × 0.5 |
| Distortion | –0.21% |
| Minimum Operation Distance | 0.2 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-KF3528M-12MP - Downloads
MVL-KF3528M-12MP Datasheet |
