MVL-KF1224M-25MP, 25MP FA LENS
KF-P Series FA Lens is specifically designed for machine vision applications, delivering high resolution, exceptional image quality, outstanding light transmittance, and dependable stability.
Features:
- Ultra high resolution and consistency of image clarity
- 1.2" image circle, bigger aperture, lower distortion, higher illumination relative
- Achromatic optical system design, better imaging performance with color camera
- Maintain excellent optical properties at different object distances
- Excellent vibration resistance and stability at high and low temperature performance, optical axis shifting within pixel level
- Multilayer and broadband coating design, compatible with visible and near infrared applications
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-KF1224M-25MP - Description

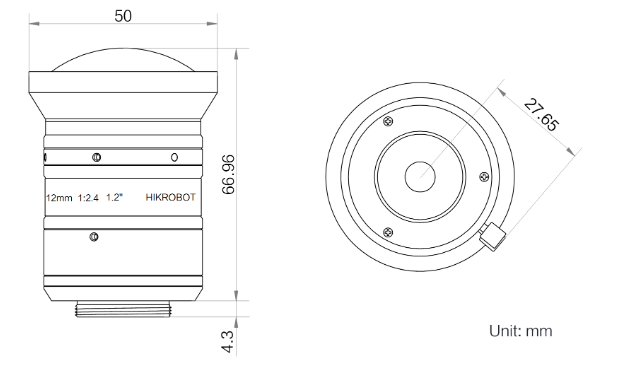

Dimension
MVL-KF1224M-25MP - Specifications
| Focal length | 12 mm |
| Image size | Φ19.3 mm(1.2’’) |
| Distortion | 0.39% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-KF1224M-25MP - Downloads
MVL-KF1224M-25MP Datasheet |
