MVL-KF1640-25MP, 25MP FA LENS
TKF-P Anti-Vibration Series FA Lens is specifically designed for machine vision applications, offering high resolution, outstanding image uniformity, and reliable stability for optimal performance with light sources and sensors.
Features:
- Ensures high consistency in clarity at both the center and edges of the image
- 1.2" large target surface, F4 fixed iris, structurally stable
- Ultra low distortion, high peripheral brightness ratio
- Maintains excellent properties across various object distances
- Provides exceptional resistance to vibration, impact, and high and low temperature stability
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-KF1640-25MP - Description

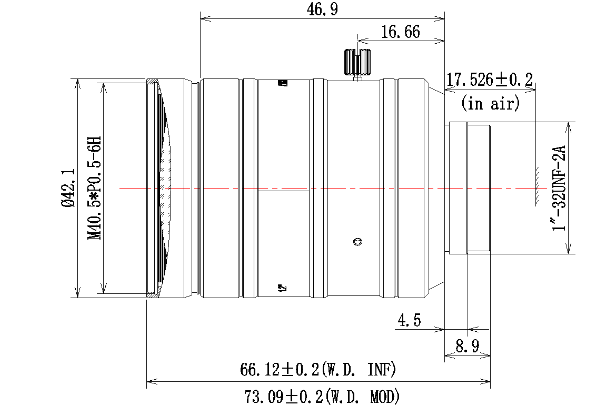

Dimension
MVL-KF1640-25MP - Specifications
| Focal length | 16 mm |
| Image size | Φ19.3 mm(1.2’’) |
| Filter Thread | M40.5 × P0.5 |
| Distortion | 0.04% |
| Minimum Operation Distance | 0.08 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-KF1640-25MP - Downloads
MVL-KF1640-25MP Datasheet |
