MVL-KF3524M-25MP, 25MP FA LENS
KF-P Series FA Lens is specifically designed for machine vision applications, delivering high resolution, exceptional image quality, outstanding light transmittance, and dependable stability.
Features:
- Provides consistent clarity in images
- Larger aperture reduces distortion and enhances relative illumination
- Improves imaging performance for color cameras
- Delivers excellent characteristics at varying object distances
- Ensures stability in extreme temperatures, with minimal optical axis shifts at the pixel level
- Suitable for both visible and near-infrared applications
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-KF3524M-25MP - Description

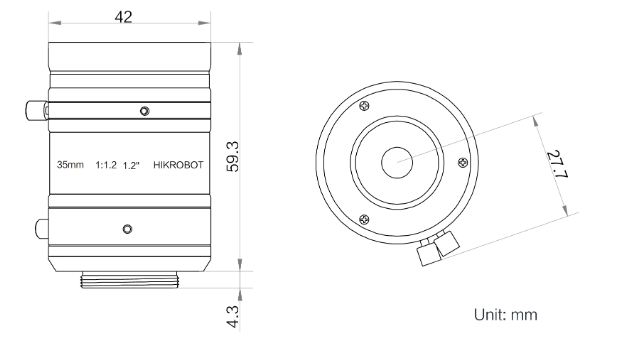

Dimension
MVL-KF3524M-25MP - Specifications
| Focal length | 35 mm |
| Image size | Φ19.3 mm(1.2’’) |
| Filter Thread | M40.5 × 0.5 |
| Distortion | 0.02% |
| Minimum Operation Distance | 0.15 m |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-KF3524M-25MP - Downloads
MVL-KF3524M-25MP Datasheet |
