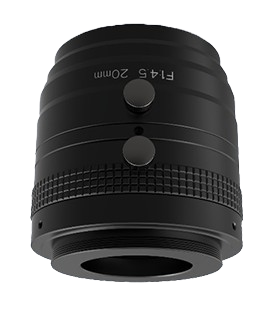

MVL-AF2045M-M42, 20mm Focal Length FA LENS
APS-C fixed-focus lens is designed for large pixel line scan cameras in machine vision, offering exceptional imaging quality, high uniformity, and low distortion.
Features:
- Ultra-high resolution and consistency of image clarity
- Low distortion
- Maximum image circle Φ30mm, applicable to APS-C area scan and 4K 7μm line scan cameras
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-AF2045M-M42 - Description

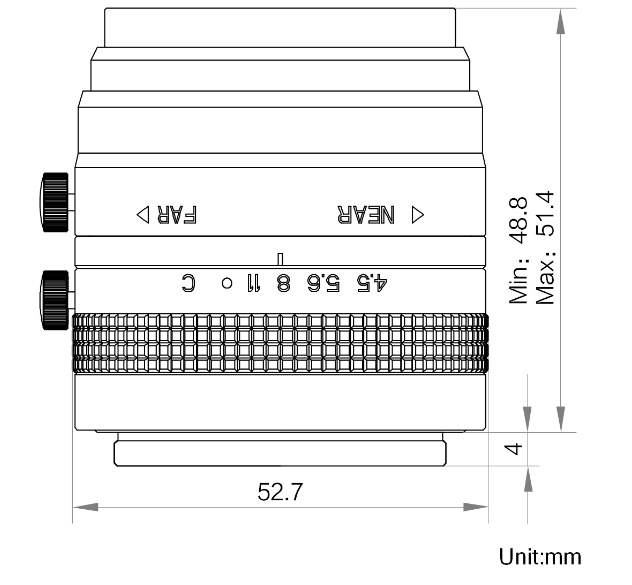

Dimension
MVL-AF2045M-M42 - Specifications
| Focal length | 20 mm |
| Image size | Φ30 mm |
| Filter Thread | M43 × 0.75 |
| Distortion | 0.20% |
| Focus Control | Manual |
| Mount | C-Mount |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-AF2045M-M42 - Downloads
MVL-AF2045M-M42 Datasheet |

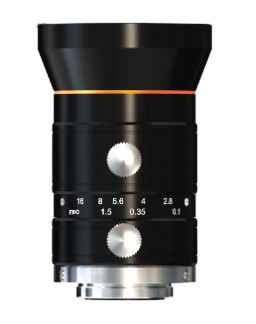

MVL-AF2045M-M42 - Similar Products
- Ultra-high resolution and consistency of image clarity
- Low distortion
- Super high image peripheral brightness ratio
- Maintaining excellent optical properties at different object distances
| Focal length | 16 mm |
| Image size | Φ17.6 mm(1.1’’) |
| Filter Thread | M43 × 0.75 |
| Distortion | 0.15% |
| Minimum Operation Distance | 0.1 m |
| Focus Control | Manual |
