MVL-AF2524M-M42, 25mm Focal Length FA LENS
This high-resolution large format lens, designed for the machine vision industry, delivers exceptional imaging quality and high uniformity, making it ideal for applications of the machine vision industry with high resolution requirements.
Features:
- High precision lens, suitable for 4K7U linear array cameras
- Excellent image clarity consistency, large aperture, low distortion
- Ultra high resolution at maximum aperture F2.4
- Maximum image size Φ29mm
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MVL-AF2524M-M42 - Description

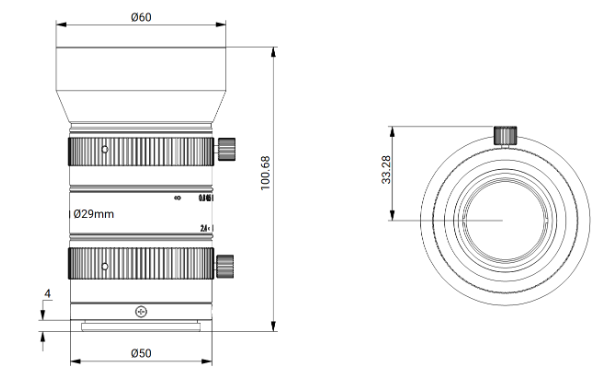

Dimension
MVL-AF2524M-M42 - Specifications
| Focal length | 25 mm |
| Image size | Φ29 mm |
| Filter Thread | M58 × P0.75 |
| Distortion | -0.34% |
| Focus Control | Manual |
| Mount | M42 × P1 |
| Min Temperature | -10°C |
| Max Temperature | 50°C |
MVL-AF2524M-M42 - Downloads
MVL-AF2524M-M42 Datasheet |
