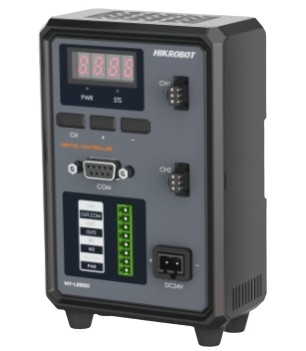

MV-LE100-48W24-2, Analog Light Controller
MV-LE100 analog light controller enables infinitely variable brightness and supports multiple light sources. Provide trigger input connectors and a device management interface, it allows for quick and easy deployment of vision light sources on-site.
Features:
- Constant voltage control and enables infinitely variable brightness.
- Adopts knob control on control panel, and plug and play.
- Provides versatile connectivity options.
- Supports installation using a slide rail or screw holes.
- Robust protection, includes overcurrent, overload, and short circuit protection.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-LE100-48W24-2 - Description

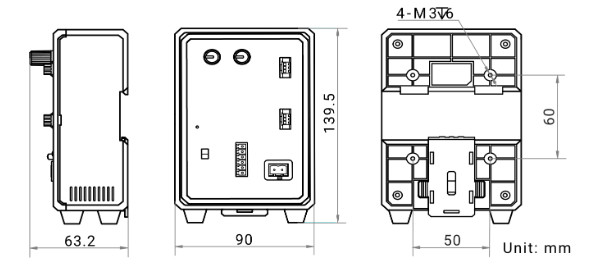

Dimension
MV-LE100-48W24-2 - Specifications
| Drive mode | Analog |
| Constant Voltage | |
| Channel | 2-channel |
| Dimming mode | Control panel |
| Trigger mode | External trigger |
| Input voltage | 24 VDC |
| Output voltage | 24 VDC |
| Output power | Max. 48 W |
| Min Temperature | 0 °C |
| Max Temperature | 40 °C |
| Cooling mode | Fan cooling |
| Ingress protection | IP30 |
MV-LE100-48W24-2 - Downloads
MV-LE100-48W24-2 Datasheet |
