MV-LE100-60W24-4D, Analog Light Controller
MV-LE100 analog light controller enables infinitely adjustable brightness and outputs multiple light channels. It features trigger input connectors and a device management interface, allowing users to quickly and easily set up vision light sources.
Features:
- Utilizes constant voltage control for infinitely adjustable brightness.
- Features knob control on the panel for easy plug-and-play operation.
- Offers multiple opto-isolated input channels.
- Supports installation using slide rails or screw holes.
- Includes protection against overcurrent, overload, and short circuits.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-LE100-60W24-4D - Description

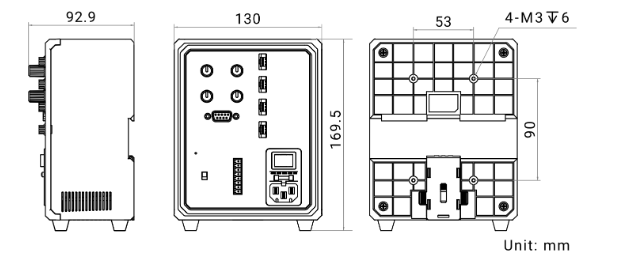

Dimension
MV-LE100-60W24-4D - Specifications
| Drive mode | Analog |
| Constant Voltage | |
| Channel | 4-channel |
| Dimming mode | Control panel |
| Software | |
| Trigger mode | External trigger |
| Input voltage | 100 VAC - 240 VAC |
| Output voltage | 24 VDC |
| Output power | Max. 60 W |
| Min Temperature | 0 °C |
| Max Temperature | 40 °C |
| Cooling mode | Fan cooling |
| Ingress protection | IP30 |
MV-LE100-60W24-4D - Downloads
MV-LE100-60W24-4D Datasheet |
