MV-LE201-200W48-2TD, Digital Light Controller
MV-LE201 digital light controller offers various variable current control modes for light sources. It features a control panel with buttons and a display screen, along with serial port or network communication.
Features:
- Employs constant current for enhanced stability of the light source, with a maximum output power of 750 W.
- Features buttons and a display for quick and easy operation.
- Enables parameter configuration and device management through serial port or network interface.
- Includes an external trigger interface for various lighting modes.
- Offers protection against overcurrent, overload, and short circuits.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-LE201-200W48-2TD - Description

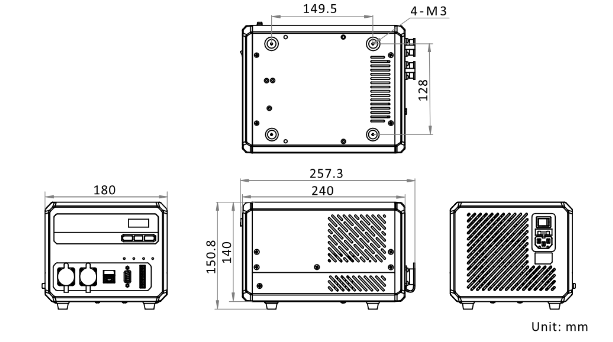

Dimension
MV-LE201-200W48-2TD - Specifications
| Drive mode | Constant Current |
| Digital | |
| Channel | 2-channel |
| Dimming mode | Control panel |
| Software | |
| Trigger mode | External trigger |
| Internal trigger | |
| Input voltage | 100 VAC - 240 VAC |
| Output voltage | 48 VDC |
| Output power | Max. 200 W |
| Min Temperature | 0 °C |
| Max Temperature | 40 °C |
| Cooling mode | Fan cooling |
| Ingress protection | IP30 |
MV-LE201-200W48-2TD - Downloads
MV-LE201-200W48-2TD Datasheet |
