MV-LE200-90W24-6D, Digital Light Controller
MV-LE200 digital light controller supports multichannel light source output and various control modes. It features I/O connectors, a device management interface, and compatible controller software.
Features:
- Compatible different control modes of light source, including control panel and software.
- Supports using serial port or network interface to set parameters and manage the device.
- Offers multichannel inputs and outputs.
- Allows installation via slide rail or hole.
- Supports overcurrent, overload, short circuit protection.
Manufacturer: HIKROBOT
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MV-LE200-90W24-6D - Description

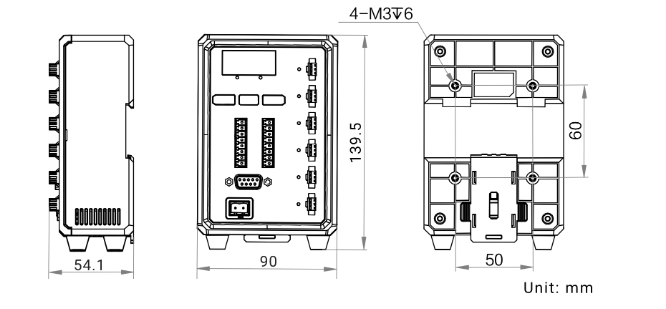

Dimension
MV-LE200-90W24-6D - Specifications
| Drive mode | Constant Voltage |
| Digital | |
| Channel | 6-channel |
| Dimming mode | Control panel |
| Software | |
| Trigger mode | External trigger |
| Internal trigger | |
| Input voltage | 24 VDC |
| Output voltage | 24 VDC |
| Output power | Max. 90 W |
| Min Temperature | 0 °C |
| Max Temperature | 40 °C |
| Cooling mode | Natural cooling |
| Ingress protection | IP30 |
MV-LE200-90W24-6D - Downloads
MV-LE200-90W24-6D Datasheet |
MV-LE200-90W24-6D - Similar Products
- Supports different control modes of light source, including control panel and software.
- Supports using serial port or network interface to set parameters and manage the device.
- Provides multichannel inputs and outputs.
- Supports installation via slide rail or hole.
- Supports overcurrent, overload, short circuit protection.
| Drive mode | Constant Voltage, Digital |
| Channel | 2-channel |
| Dimming mode | Control panel, Software |
| Trigger mode | External trigger, Internal trigger |
| Input voltage | 24 VDC |
| Output voltage | 24 VDC |
- Adopts constant current to improve light source stability with max. output power of 750 W.
- Adopts buttons and display to have quick operations.
- Supports using serial port or network interface to set parameters and manage the device.
- Supports external trigger interface for different lighting modes.
- Supports overcurrent, overload, short circuit protection.
| Drive mode | Constant Current, Digital |
| Channel | 2-channel |
| Dimming mode | Control panel, Software |
| Trigger mode | External trigger, Internal trigger |
| Input voltage | 24 VDC |
| Output voltage | 5 VDC |
