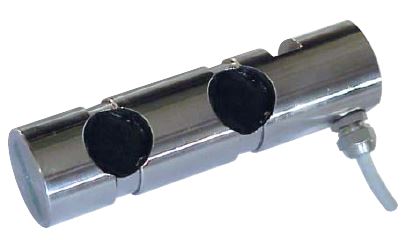

MTRD, Tension - Force/Weighing Sensor
This device is designed for measuring tension in very heavy loads using clevis pins. It features a high safety coefficient and is constructed from stainless steel with an IP65 rating, making it suitable for various environments.
Features:
- Load cell constructed from stainless steel

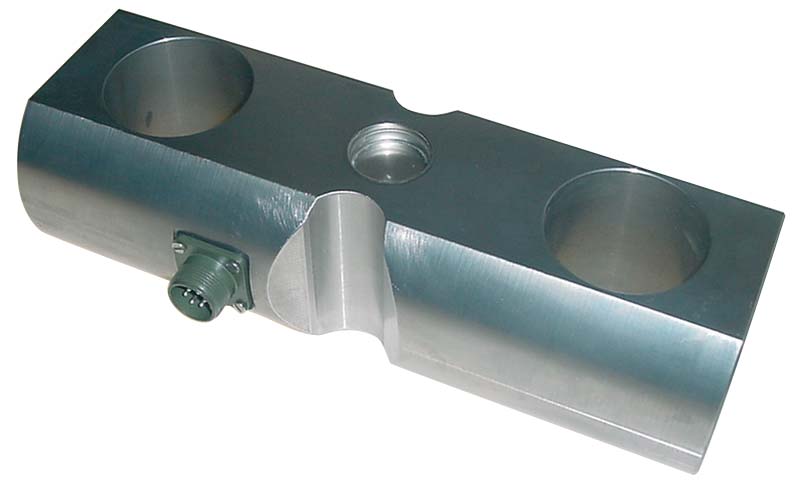

- MTRD sensor provides IP65 protection, while the MTRS sensor is hermetically sealed for IP67 protection
- Combined error of ±0.15%
- High safety coefficient of 300%
- Ideal for weighing or measuring heavy loads on handling equipment
- Available capacities: 5, 10, 20, 30, and 50 tons
Manufacturer: Scaime
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MTRD - Description

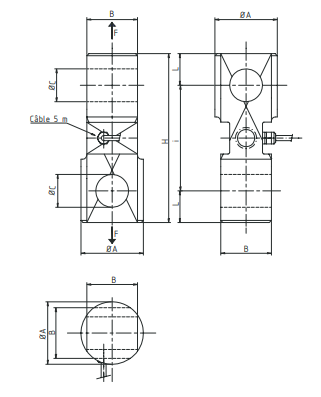

Dimension
MTRD - Specifications
| Application | Tension |
| Weighing | |
| IP Rating | IP65 |
| Min Temperature | -20 °C |
| Max Temperature | 70 °C |
MTRD - Downloads
MTRD Datasheet |
MTRD - Similar Products
- Stainless steel construction for durability
- IP65 protection rating
- High safety coefficient of 300%
- Suitable for cranes and lifting equipment
- Available in nominal forces from 5 tons to 50 tons, with options up to 500 kN
| Type | Weighing Beam |
| Application | Tension, Weighing |
| Output | 1 mV/V |
| IP Rating | IP65 |
| Min Temperature | -20 °C |
| Max Temperature | 70 °C |
- Tension
- Accuracy: ±0.3%
- Outer Diameter: 14.0mm - 35.0mm
- Height: 35.0mm - 70.0mm
- Connection: 3m Integral Cable
- Stainless Steel (Measuring Body)
- Aluminum (Material Housing)
| Type | Rod Type |
| Application | Tension |
| Full Scale | 220 lbs, 450 lbs, 1120 lbs, 2200 lbs, 4500 lbs, 11200 lbs, 22000 lbs |
| Output | 1 mV/V |
| Precision | ±0.3 % FS |
| Excitation | 2 V - 12 V DC |
- Accuracy: 0.5 % (0.1 % in option)
- High safety coefficient: > 500 %
- Stainless steel
- IP65, IP67

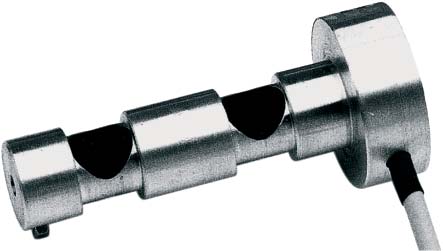

| Type | Load Pin |
