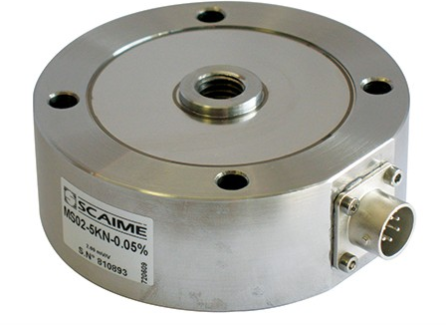

MS02, Force Sensor - Tension/Compression
This load cell features a stainless steel construction, ensuring durability and reliability. It offers very high accuracy and is available with level protection ratings of IP65 and IP67.
Features:
- Force sensor
- Very high accuracy
- Stainless steel
- Protection level IP65
- Tension and compression
- Low deflexion
- High long life stability
- Using for testing machine
Manufacturer: Scaime
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MS02 - Description

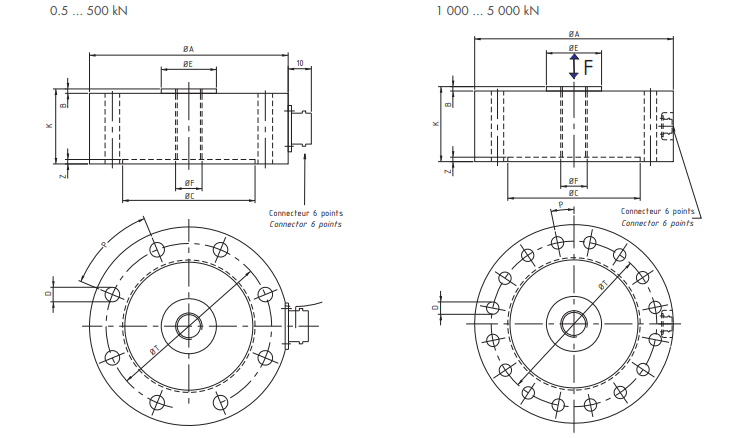

Dimension
MS02 - Specifications
| Application | Tension & Compression |
| Output | 2 mV/V |
| IP Rating | IP65 |
| IP67 | |
| Min Temperature | -10 °C |
| Max Temperature | 50 °C |
MS02 - Downloads
MS02 Datasheet |
MS02 - Similar Products
- Force sensor with exceptional accuracy
- Optional overload protection
- Wide temperature range option
- IP67 protection level
- Capable of measuring both tension and compression
| Application | Tension & Compression |
| Output | 2 mV/V |
| IP Rating | IP67 |
| Min Temperature | -10 °C |
| Max Temperature | 50 °C |
- Calibrated Signal Output for Multi-Load Cells Mounting
- Tension & Compression
- Accuracy: ±0.017% F.S.
- Length: 130.0mm
- Width: 31.0mm
- Height: 19.0mm
- Connection: 5m Integral Cable
- Stainless Steel
| Type | Weighing Beam |
| Application | Tension & Compression |
| Full Scale | 1120 lbs, 1650 lbs, 2600 lbs, 4500 lbs |
| Output | 3 mV/V |
| Precision | ±0.017 % FS |
| Excitation | 1 V - 15 V DC |
- EEC & NTEP Approvals
- Off-Center Load Compensated
- Tension & Compression
- Accuracy: ±0.017% F.S.
- Length: 191mm
- Width: 76mm
- Height: 75mm
- Connection: 3m Integral Cable
| Type | Weighing Beam |
| Application | Tension & Compression |
| Full Scale | 112 lbs, 150 lbs, 220 lbs, 330 lbs, 450 lbs, 560 lbs, 660 lbs, 1120 lbs |
| Output | 2 mV/V |
| Precision | ±0.017 % FS |
| Excitation | 1 V - 15 V DC |
- EEC Approval
- Tension & Compression
- Accuracy: ±0.008% F.S.
- Length: 150mm
- Width: 25mm
- Height: 40mm
- Connection: 3m Integral Cable
- Aluminum Alloy
| Type | Weighing Beam |
| Application | Tension & Compression |
| Full Scale | 33 lbs, 75 lbs, 112 lbs, 165 lbs, 220 lbs |
| Output | 0.5 mV/V, 1 mV/V, 1.5 mV/V, 2 mV/V |
| Precision | ±0.008 % FS |
| Excitation | 1 V - 15 V DC |
- EEC Approval
- Tension & Compression
- Accuracy: ±0.017% F.S.
- Length: 150mm
- Width: 38mm
- Height: 40mm
- Connection: 3m Integral Cable
- Aluminum Alloy
| Type | Weighing Beam |
| Application | Tension & Compression |
| Full Scale | 66 lbs, 112 lbs, 220 lbs, 450 lbs |
| Output | 2 mV/V |
| Precision | ±0.017 % FS |
| Excitation | 1 V - 15 V DC |
