MTRP, Tension/Compression Force Sensor
This load cell is built with stainless steel for durability and features an IP65 protection level. It provides high accuracy and includes overload protection for enhanced safety in demanding applications.
Features:
- Force sensor with high accuracy
- Optional overload protection
- Optional wide temperature range
- IP65 protection level
- Capable of measuring both tension and compression
Manufacturer: Scaime
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
MTRP - Description

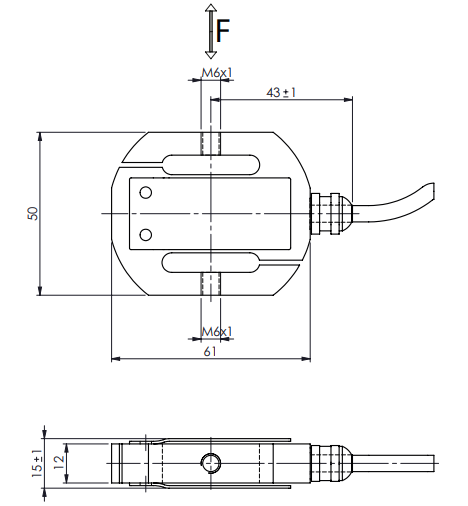

Dimension
MTRP - Specifications
| Application | Tension & Compression |
| Output | 2 mV/V |
| IP Rating | IP65 |
| Min Temperature | -30 °C |
| Max Temperature | 100 °C |
