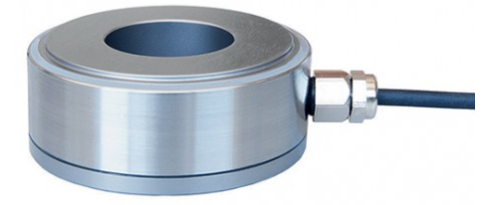

K181, Compression - Force Sensor
This measuring washer is designed to determine bolt preload. It features a stainless steel construction, IP65 protection level, and ensures excellent repeatability in measurements.
Features:
- Force sensor made from stainless steel
- Measures clamping force of fasteners and screws
- High repeatability for consistent results
- IP65 protection level
Manufacturer: Scaime
Quote
Datasheet
Specifications
Downloads
Similar Products
K181 - Specifications
| Application | Compression |
| IP Rating | IP65 |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
K181 - Downloads
K181 Datasheet |
