PTLI, Draw-wire displacement sensors
This SERIE PTLI offers a full stroke range from 0 to 10 m and up to 0 to 50 m. It features an optical incremental encoder that provides a displacement-proportional signal, ensuring a simple mechanical assembly.
Features:
- Wire displacement sensor constructed from aluminum
- IP67 protection rating
- High accuracy of 0.01%
- Output signals include pulses and incremental encoder signals
Manufacturer: Scaime
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
PTLI - Description

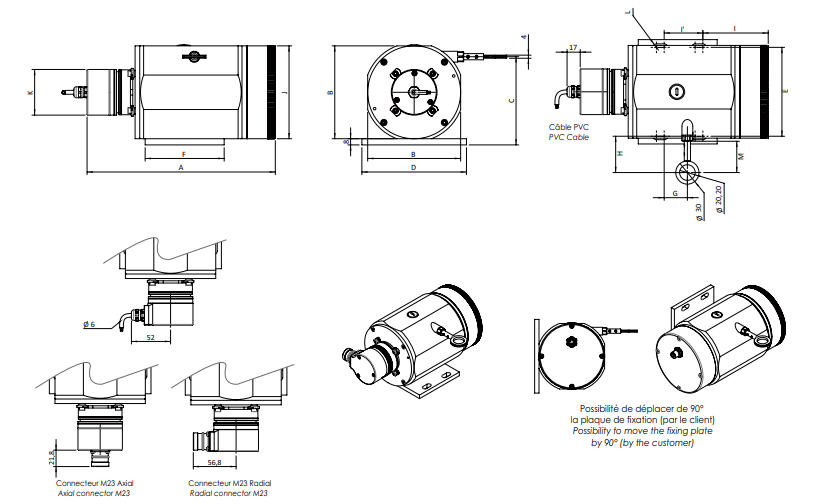

Dimension
PTLI - Specifications
| Type | Draw Wire |
| Full Scale | 0 -10 m |
| 0 -15 m | |
| 0 -20 m | |
| 0 - 30 m | |
| 0 -40 m | |
| 0 -50 m | |
| Non-Linearity | ± 0.01 % EM |
| ± 0.05 % EM | |
| IP Rating | IP64 |
| IP67 | |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
PTLI - Models & Accessories
Models
| PTLI10 | Full stroke range EM: 0 -10m |
| PTLI15 | Full stroke range EM: 0 -15m |
| PTLI20 | Full stroke range EM: 0 -20m |
| PTLI30 | Full stroke range EM: 0 -30m |
| PTLI40 | Full stroke range EM: 0 -40m |
| PTLI50 | Full stroke range EM: 0 -50m |
PTLI - Downloads
SERIE PTLI Datasheet |
