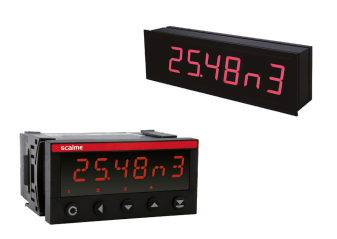

IM-R / IM-RL57, Measurement indicator
IM-R / IM-RL57 A versatile display repeater for IM series indicators or eNod4 transmitters, available in 14mm or 57mm digit heights. Power supply 80-250 VAC/VDC.
Features:
- 6-digit repeater with 14mm or 57mm digits (visible up to 30m indoors).
- Power Supply 80-250 VAC/VDC.

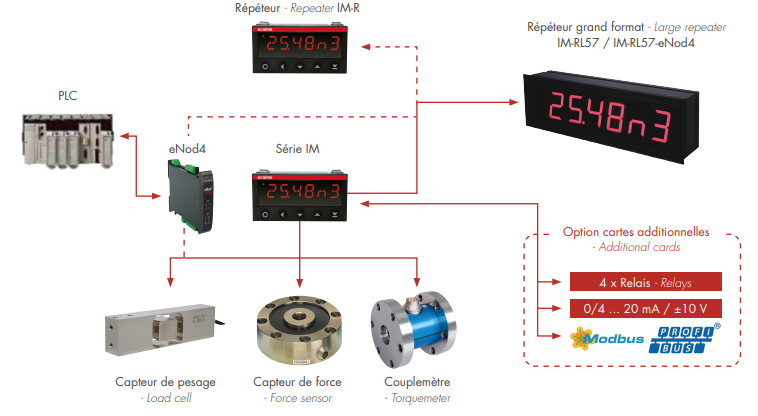

- Connects to IM series indicators or eNod4 transmitters via RS485 Modbus-RTU.
- Flush or fixed installation, with adjustable mounting foot (IM-RL57).
- IM-RL57 allows display color changes (red/orange/green) with up to 3 setpoints.
- Infrared remote for configuration.
Manufacturer: Scaime
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
IM-R / IM-RL57 - Description

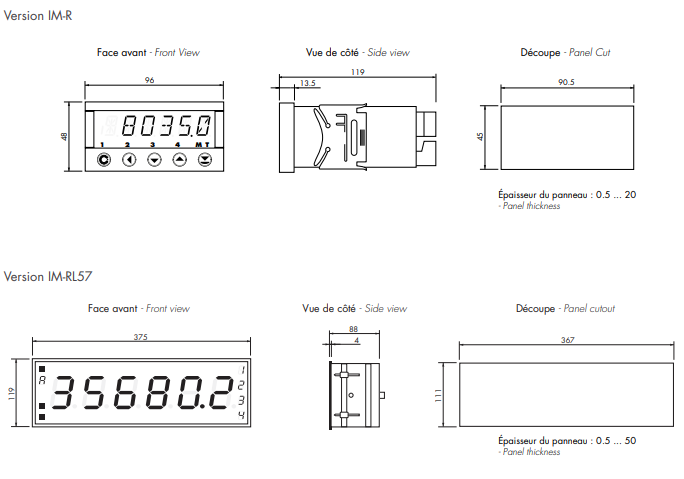

Dimension
IM-R / IM-RL57 - Specifications
| Supply Power | 80 - 250 VAC / VDC |
| IP Rating | IP64 |
IM-R / IM-RL57 - Models & Accessories
Models
| IM-RL57 | Large repeater 80 - 250 VAC - Visible up to 30 m indoors |
| IM-R | Repeater 48x96 mm power supply 80 - 250 VAC/VDC |
| IM-RL57-eNod4 | Large repeater 80 - 250 VAC - Visible up to 30 m indoors |
| IM-R-eNod4 | Repeater 48x96 mm power supply 80 - 250 VAC/VDC |
IM-R / IM-RL57 - Downloads
IM-R / IM-RL57 Datasheet |
IM-R / IM-RL57 - Similar Products

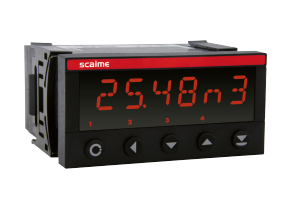

- Designed for strain gauge sensors
- 6-digit programmable display
- Measurement rate up to 100 meas./s
- Power supply options: 80…250 VAC/VDC or 10…30 VAC/VDC
- Supports 6-wire connection
- Available with or without 4 relays
| Input Type | Strain Gauge |
| No. of Inputs | 3 |
| Excitation | 5 V DC |
| Supply Power | 80 - 250 VAC / VDC |
| IP Rating | IP64 |

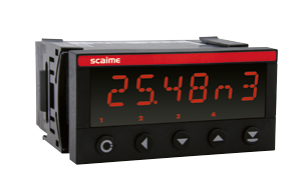

- 6-digit programmable projection
- Up to 100 measurements per second
- 80-250 VAC/VDC or 10-30 VAC/VDC
- Input Options ±10V or 0/4-20mA
- Equipped with or without 4 relays
- 3 types of filtering for enhanced signal processing
- Real or theoretical calibration methods
- Stores maximum and minimum values
| No. of Inputs | 3 |
| Excitation | 5 - 24 VDC |
| Supply Power | 80 - 250 VAC / VDC |
| IP Rating | IP64 |

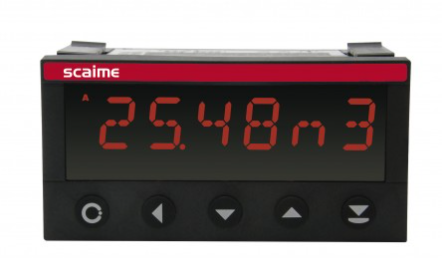

- 6-digit programmable display with 14mm red LED digits.
- Accepts TTL, PNP, or NPN signals, with configurable voltage levels.
- Quadrature mode for 4x resolution.
- 80-250 VAC/VDC for the unit; 5-24 VDC adjustable sensor supply.
- Digital input for function control, programmable front panel keys, and parameter saving via PC.
| No. of Inputs | 1, 3 |
| Excitation | 5 - 24 VDC |
| Supply Power | 80 - 250 VAC / VDC |
| IP Rating | IP64 |
