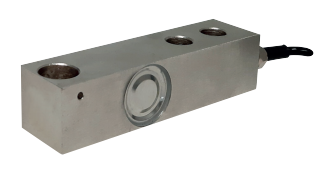

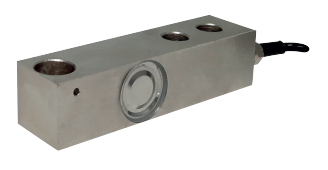

SK10A, Weighing Beam
The SK10A shear beam load cell is designed for industrial weighing and load control applications. It features a rated capacity of 500 kg, up to 5t and is ideal for use in harsh environments with a wide temperature range.
Features:
- Nickel-plated steel construction for durability
- IP67 protection level, suitable for harsh environments
- Combined error of 0.02% of full scale, ensuring high precision
- Ideal for industrial weighing and load control applications
- Capacities : 500 kg, 1 t, 2 t, 5t
Manufacturer: Scaime
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
SK10A - Description

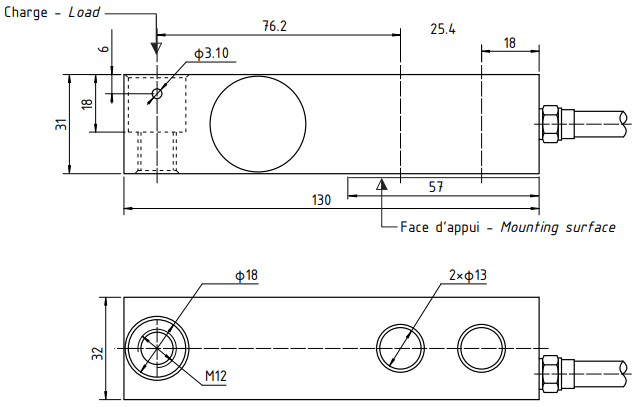

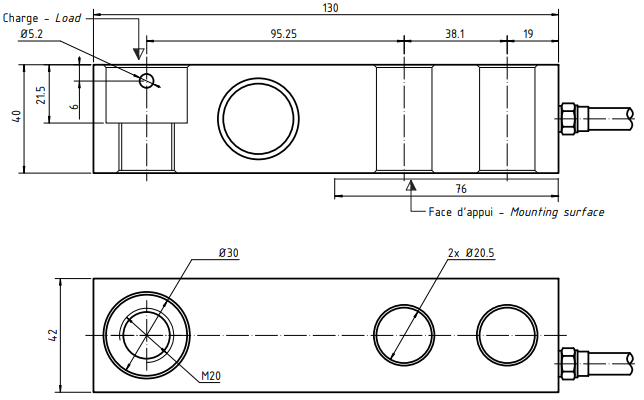

Dimension
SK10A 5T
SK10A 2T
SK10A - Specifications
| Type | Weigh Cell |
| Full Scale | 500 kg |
| 1000 kg | |
| 2000 kg | |
| 5000 kg | |
| IP Rating | IP67 |
SK10A - Models & Accessories
Models
| SK10A 5T | Nickel plated steel shear beam load cell, 5 t |
| SK10A 2T | Nickel plated steel shear beam load cell, 500 kg - 2 t |
SK10A - Downloads
SK10A 5T Datasheet |
SK10A 2T Datasheet |
SK10A - Similar Products
- Nickel plated steel construction with IP67 protection
- Double shear beam for reliable performance
- Calibrated output signal, designed for multi-load cell configurations
- Ideal for on-board weighing systems for vehicles
- Mounting and fixing kit included for easy installation
- Capacities : 10t (5t dynamic)
| Type | Weigh Cell |
| Full Scale | 10 t |
| IP Rating | IP67 |
