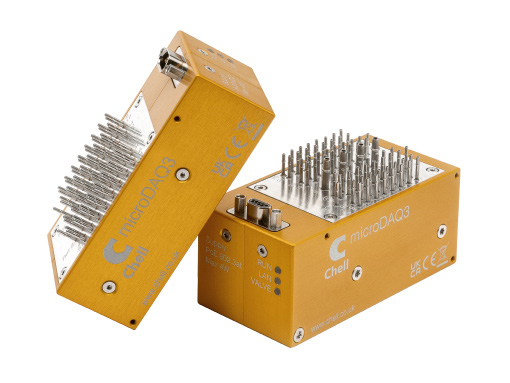

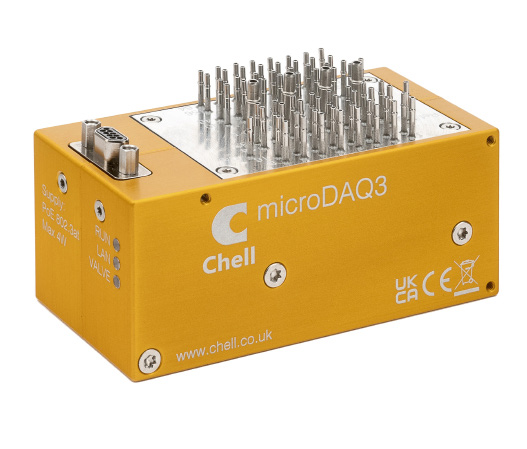

microDAQ3-Gen2, 64 Channel Advanced Pressure Scanner
The microDAQ3-Gen2 is the latest version of the microDAQ3, with key improvements in accuracy and speed for high-precision pressure scanning. This new generation will be released in early 2025
Features:
- Data quality with up to 0.02% full-scale accuracy
- High-speed acquisition at 1kHz per channel
- Synchronous data capture for efficient processing
- Absolute and differential measurement options
- IEEE 1588 PTPv2 time-stamping for precise synchronization
- Temperature compensation from -20 to 90°C
- Dual 24-bit ADCs for pressure and temperature measurements
- Outputs via Ethernet, CAN, IENA, and EtherCAT
- Optional electrically driven valve for purge and re-zero functionality
Manufacturer: Chell Instruments
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
microDAQ3-Gen2 - Description
Pressure Range and Accuracy Chart - Differential Pressures

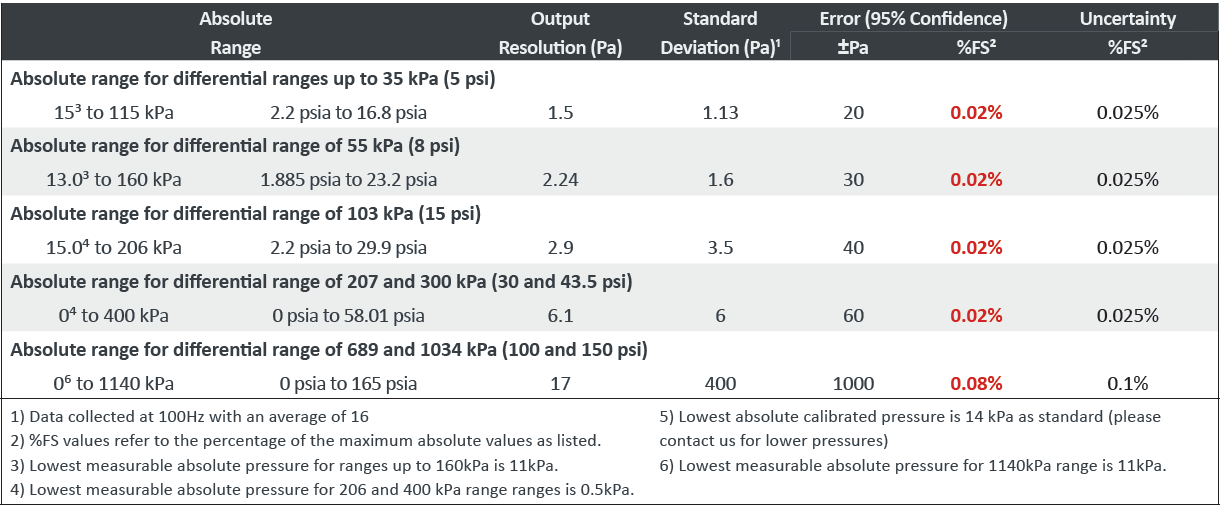

Pressure Range and Accuracy Chart - Absolute Pressures

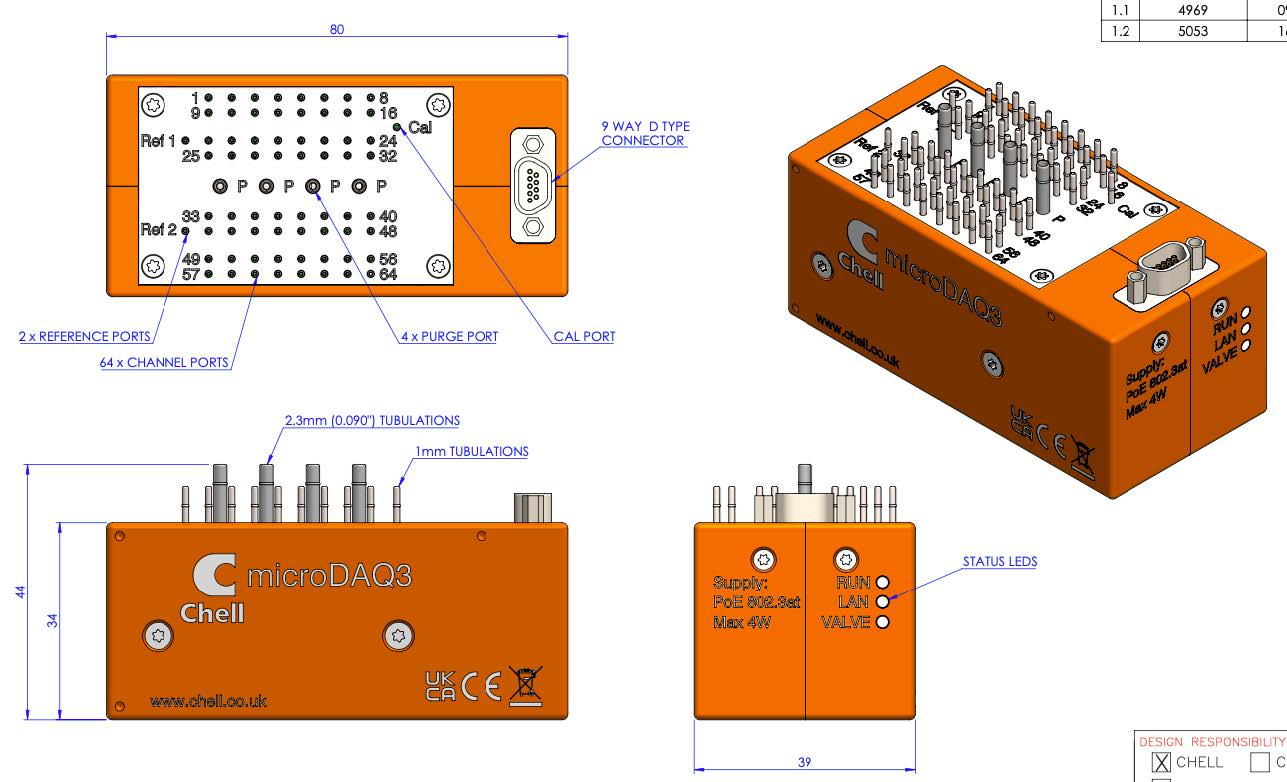

Dimensions and Input Port Designation

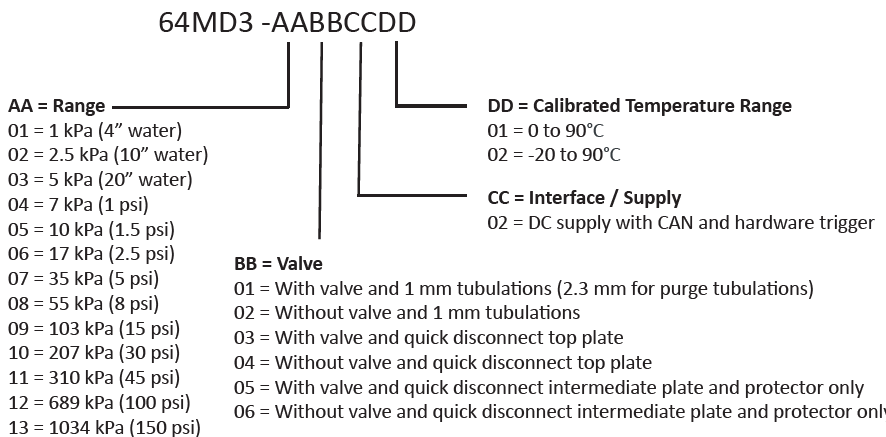

Part Number Chart
microDAQ3-Gen2 - Specifications
| Type | Scanner |
| # of Channels | 64 |
microDAQ3-Gen2 - Downloads
MicroDaq3 Gen2 Data Sheet Datasheet |
