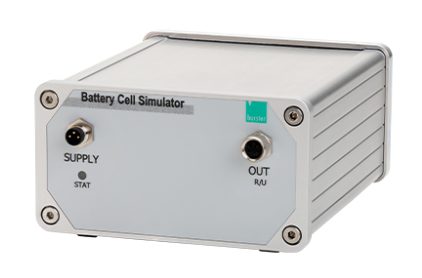

2500, Battery Cell Simulator
The Battery Cell Simulator tests Battery Measuring Modules in the 2511 series by emulating battery cells with adjustable resistance and voltage. It simulates cell characteristics for incoming goods inspection and battery module assembly.
Features:
- Resistance simulation: 1 mΩ to 300 mΩ
- Voltage simulation: 2.5 V to 4.5 V DC
- Accuracy: 0.05%

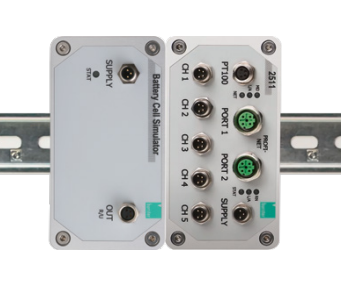

- Compact design for wall mounting or DIN rail installation
- Compatible with various common cell formats
- Optionally with custom resistance and voltage values
Manufacturer: Burster Praezisionsmesstechnik Gmbh
Quote
Datasheet
Description
Specifications
Downloads
2500 - Description

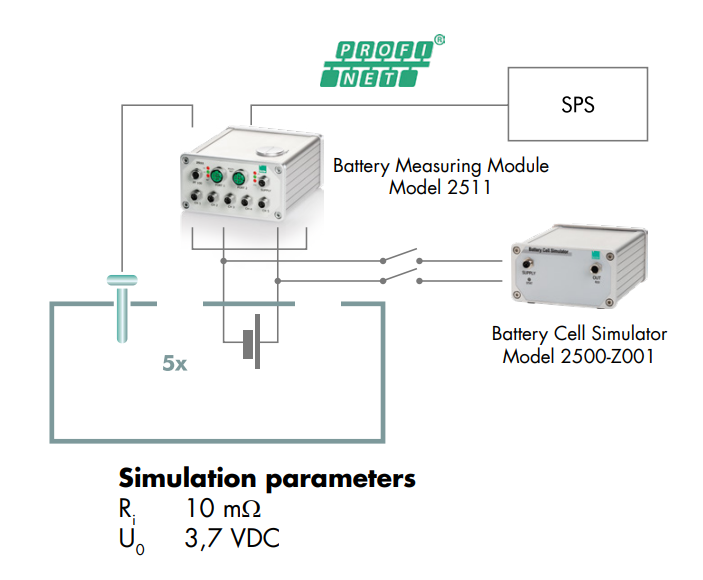

The Battery Cell Simulator tests Battery Measuring Modules in the 2511 series by emulating battery cells with adjustable resistance (1-300 mΩ) and voltage (2.5-4.5 V DC). It simulates cell characteristics for incoming goods inspection and battery module assembly. It operates on 24V DC with front LED indicators and offers wall or DIN rail mounting options.
2500 - Specifications
| Range | 1 mΩ - 300 mΩ |
| Voltage | 2.5 V DC - 4.5 V DC |
| Interface | PROFINET |
| Supply | 11 - 30 V DC |
2500 - Downloads
2500 Datasheet |
BA_2500 Manual |
