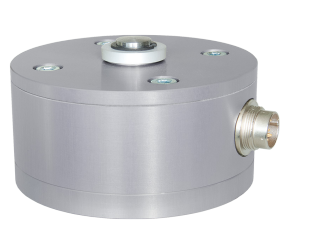

W-2752, Compression Load Cell
W-2752 Compression Load Cell is designed for high-precision weighing applications, offering excellent performance and reliability. Ideal for industries requiring accurate weight measurements in compact form factors.
Features:
- Rated Load of 3 kg - 5 kg
- Aluminum construction
- IP60 rated of level protection
- Accuracy Class: ±0.1%
- Overload Protection
Manufacturer: Lorenz Messtechnik GmbH
Quote
Datasheet
Description
Specifications
Downloads
W-2752 - Description

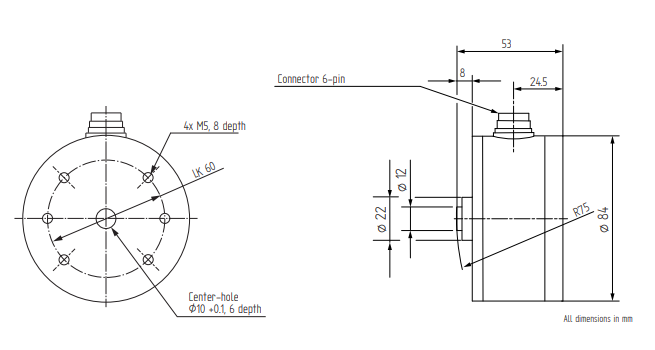

Dimension
W-2752 - Specifications
| Type | Weigh Cell |
| Application | Compression |
| Excitation | 1 V - 15 V |
| IP Rating | IP60 |
| Min Temperature | -20 °C |
| Max Temperature | 60 °C |
W-2752 - Downloads
W-2752 Datasheet |
