LFC / LFD, Loading Foot

Loading Foot LFC / LFD is designed for various load cell types, including F60X, SB30X, and SK30X, offering durable nickel-plated steel or stainless steel construction.

Features:

Height adjustment range from 51 to 116 mm, depending on the model.
Rubber tightness of 75 Sh A ± 5 for optimal load distribution.
Max. tilt angle of ±10° for precise alignment.
Tightening torque requirements: 10-100 N·m, depending on the model.
Stainless steel option for enhanced corrosion resistance.
Durable design for reliable performance in industrial weighing applications.

Manufacturer: Lorenz Messtechnik GmbH

Quote

Datasheet

Description

Models & Accessories

Downloads

LFC / LFD - Description

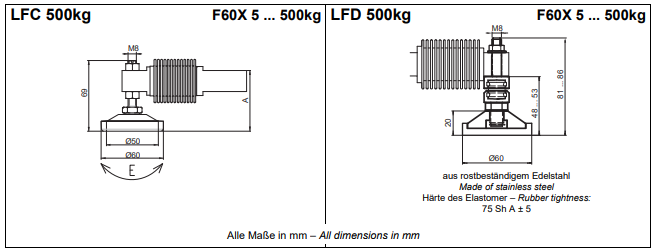

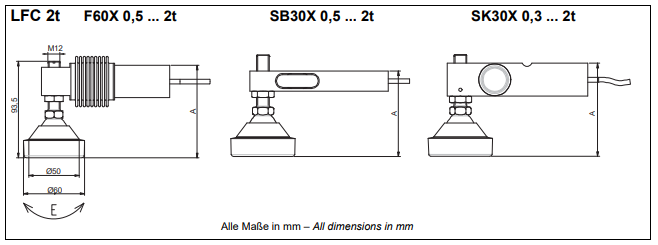

Dimension

LFC / LFD - Models & Accessories

Models

LFC	Used for F60X, SB30X, and SK30X, 0.5 to 5 tons.
LFD	Used for F60X, 500 kg to 5 tons.

LFC / LFD - Downloads

LFC / LFD

Datasheet
