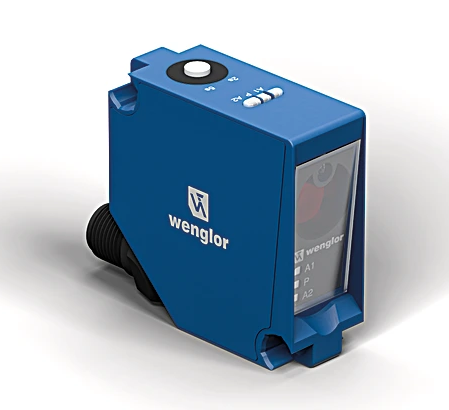

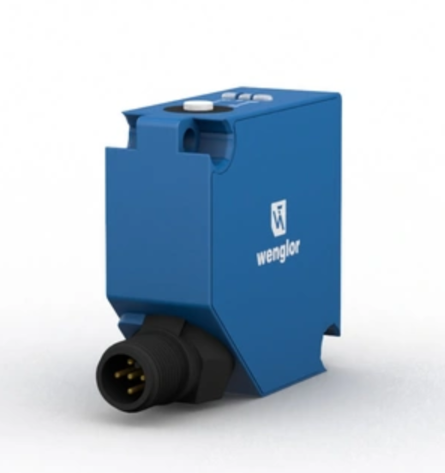

P1PY101, Laser Distance Sensor
The P1PY101 uses transit time measurement with Dynamic Sensitivity (DS) technology, providing reliable object detection across a 10 m range, even under challenging conditions like low signals, ambient light, or dirt.
Features:
- Laser Sensor
- Wide working range of up to 10,000 mm with DS technology
- Two mutually independent switching outputs
- Reliable detection of dark or shiny objects at extreme angles
- Intuitive Teach-In configuration for easy setup
- Robust performance in challenging conditions, including ambient light and dirt
- IO-Link V1.1 interface for seamless industrial integration
Manufacturer: Wenglor
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
P1PY101 - Description
The P1PY101 laser distance sensor is designed for precision and reliability, leveraging Dynamic Sensitivity (DS) technology to detect objects in difficult conditions, including dark, shiny, or angled surfaces. With a working range of up to 10 meters and excellent resistance to ambient light and dirt, this sensor ensures optimal performance in automated industrial environments. Its intuitive Teach-In configuration and advanced condition monitoring features enable seamless integration and predictive maintenance. Built to last, the sensor boasts a durable plastic housing, IP67/IP68 protection, and an IO-Link interface for connectivity in modern production systems.

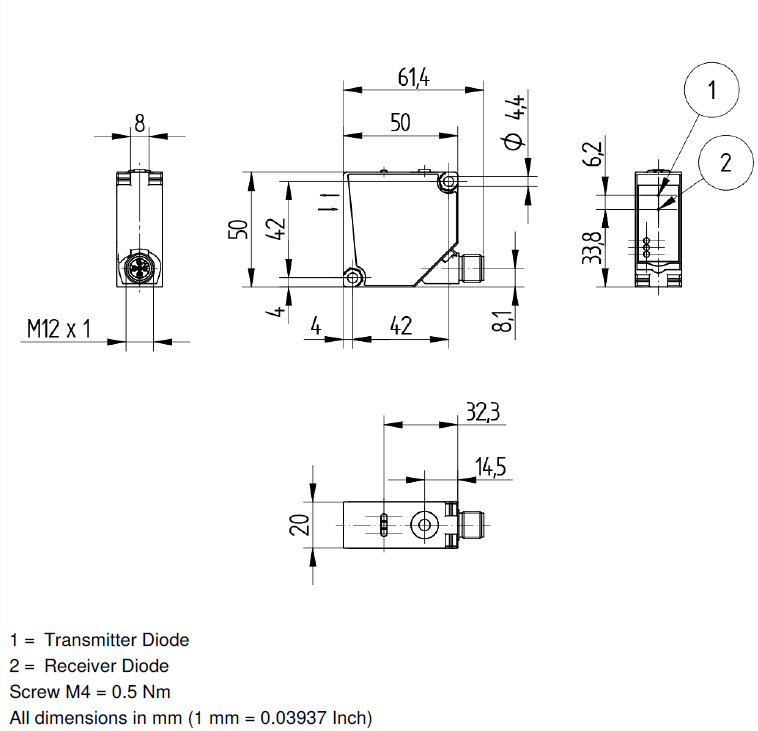

Dimensions
P1PY101 - Specifications
| Type | Laser |
| Full Scale | 0 -10 m |
| IP Rating | IP67 |
| IP68 | |
| Min Temperature | -40 °C |
| Max Temperature | 50 °C |
P1PY101 - Downloads
P1PY101 Time-of-Flight Laser Sensor Datasheet |
P1PY101 - Similar Products

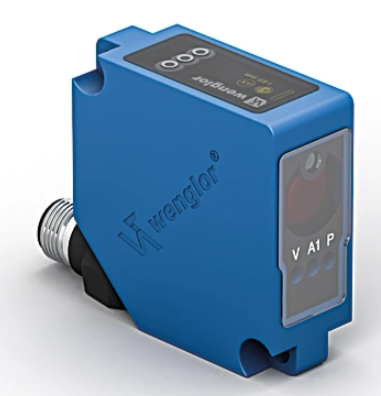

- Interference-free operation with WinTec technology
