PNBC001, High-Precision Laser Distance Sensor
The PNBC001 laser distance sensor provides ultra-precise surface-independent measurements with 16-bit resolution and a maximum linearity deviation of 0.05%, ideal for high-precision industrial applications.
Features:
- Ultra-high resolution: 0.06 µm
- Exceptional accuracy with a linearity deviation of just 0.05%
- Surface-independent measurements with advanced algorithms
- Compact IP67-rated aluminum housing for industrial durability
- Industry 4.0 compatible with Ethernet TCP/IP connectivity
- Quick response time of <33 µs for high-speed operations
Manufacturer: Wenglor
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
PNBC001 - Description
The PNBC001 high-precision laser distance sensor is designed to deliver unparalleled accuracy and reliability in industrial environments. Featuring a 16-bit resolution CMOS line array and advanced algorithms, it provides stable, surface-independent measurements even on complex surfaces like metal with speckle effects. With a working range of 20–24 mm and a resolution of 0.06 µm, it achieves precise results suitable for the most demanding applications. The device operates with minimal temperature drift, ensuring thermally stable measurements without a warm-up phase. It supports Ethernet TCP/IP communication for seamless integration into Industry 4.0 systems. The compact, robust aluminum housing is IP67-rated, providing durability in challenging industrial conditions.

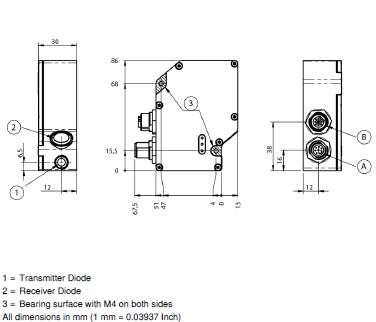

Dimensioned Picture
PNBC001 - Specifications
| Type | Laser |
| Full Scale | 20 mm |
| 24 mm | |
| Output | 0 - 10 V DC |
| 4 - 20 mA | |
| Resolution | 0.00006 mm |
| IP Rating | IP67 |
| Min Temperature | -10 °C |
| Max Temperature | 40 °C |
PNBC001 - Downloads
PNBC001_Datasheet Datasheet |
