PNBC006, Laser Distance Sensor Triangulation - discontinued
- This product has been discontinued - Please see PNBC106
- Ultra-precise resolution: 3.1 µm
- Consistent, surface-independent measurements with advanced algorithms
- Linearity deviation of 0.05% for exceptional accuracy
- Ethernet TCP/IP connectivity for seamless integration into Industry 4.0 systems
- IP67-rated aluminum housing for industrial durability
- Fast response time: <33 µs
The PNBC006 laser distance sensor is built for precision and reliability in demanding industrial environments. Featuring a high-resolution CMOS line array and proven DSP technology, it provides stable, surface-independent measurements across a working range of 200–400 mm. With a resolution of 3.1 µm and a linearity deviation of just 0.05%, it delivers exceptional accuracy. The sensor supports Ethernet TCP/IP communication, making it fully compatible with Industry 4.0 systems. It includes four configurable switching outputs, an analog output (0–10 V/4–20 mA), and a Teach-In function for easy setup. The durable aluminum housing is rated IP67, ensuring protection against dust and water. This sensor is ideal for applications requiring high precision and speed in dynamic environments.

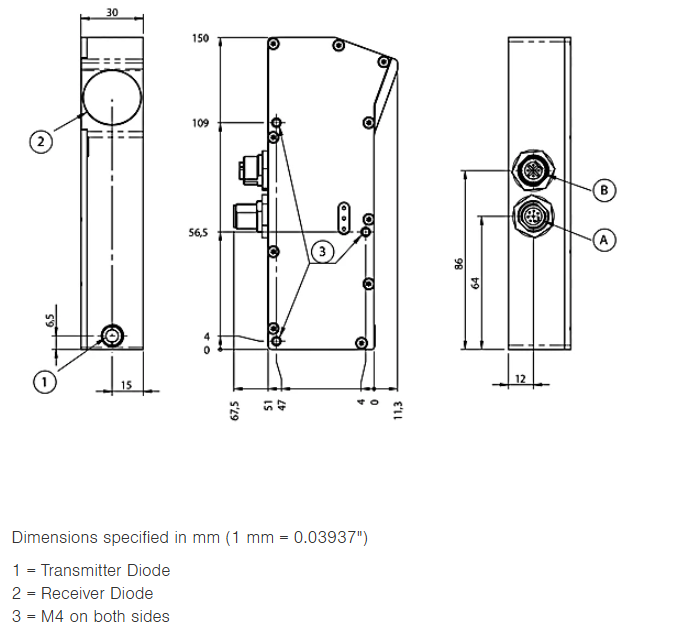

Dimensioned Picture
| Type | Laser |
| Full Scale | 200 mm |
| 400 mm | |
| Output | 0 - 10 V DC |
| 4 - 20 mA | |
| Resolution | 0.003 mm |
| IP Rating | IP67 |
| Min Temperature | -10 °C |
| Max Temperature | 40 °C |
PNBC006 Datasheet Datasheet |
