F-Scan GO, Wireless In-Shoe Gait Analysis System
- Fully wireless, in-shoe pressure mapping system with onboard storage

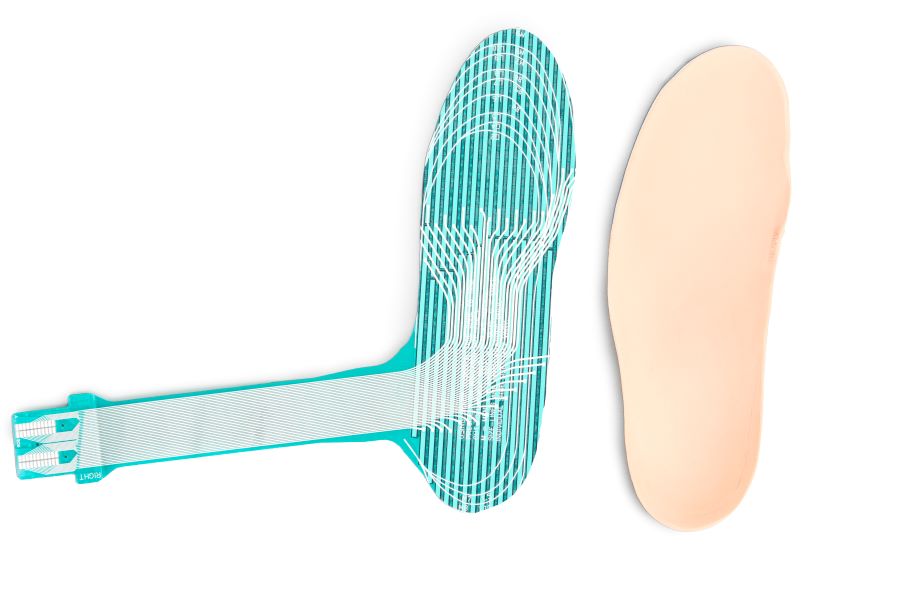

- High-resolution, trimmable sensors for a customized fit
- Real-time pressure and force data collection over Wi-Fi
- Sampling rate of up to 500 Hz for high-speed dynamic analysis
- Center of Force (CoF) tracking for gait and foot function assessment
- Automatic segmentation of foot regions for deeper analysis
- Pre- and post-intervention comparison reports for patient monitoring

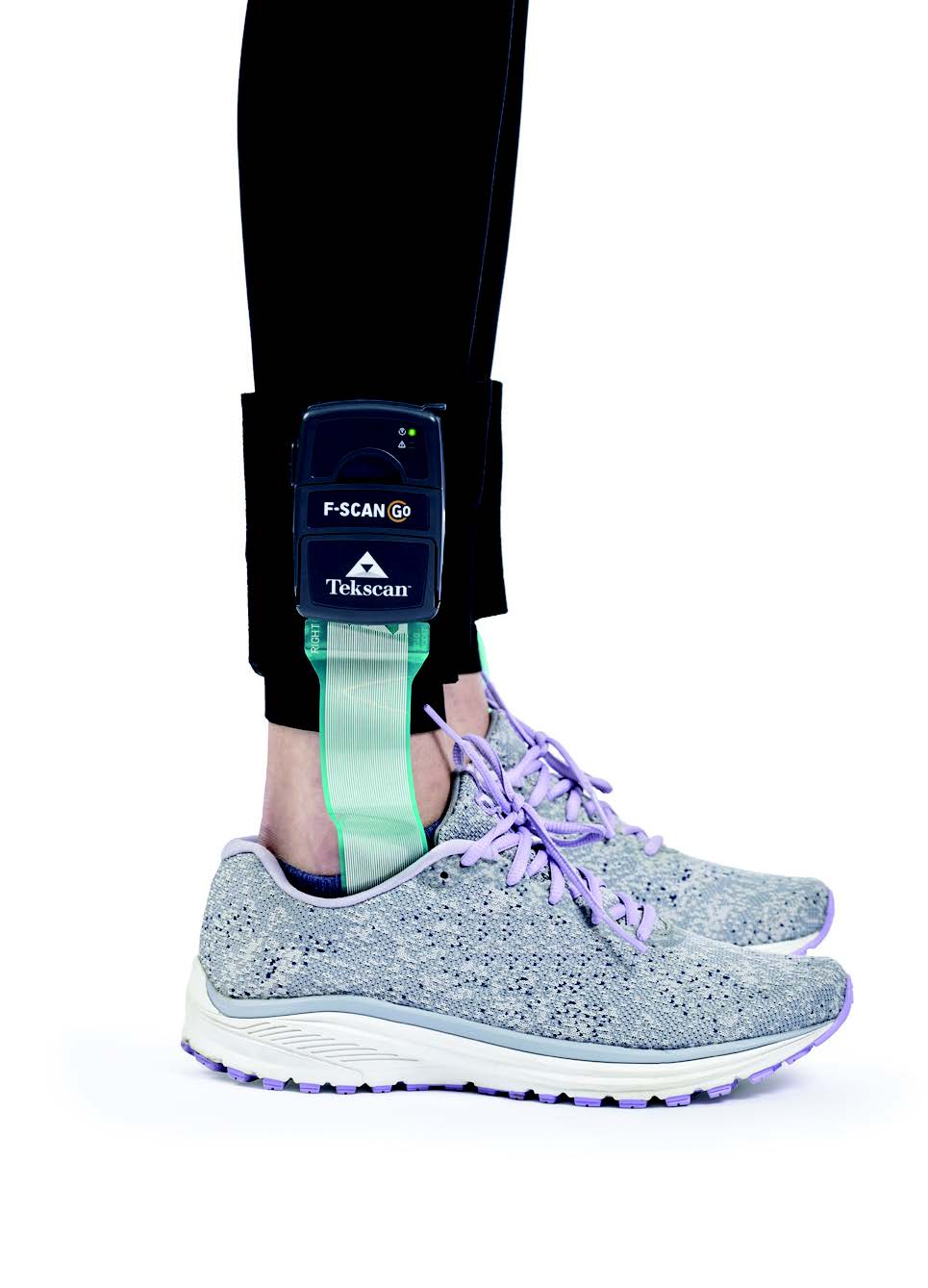

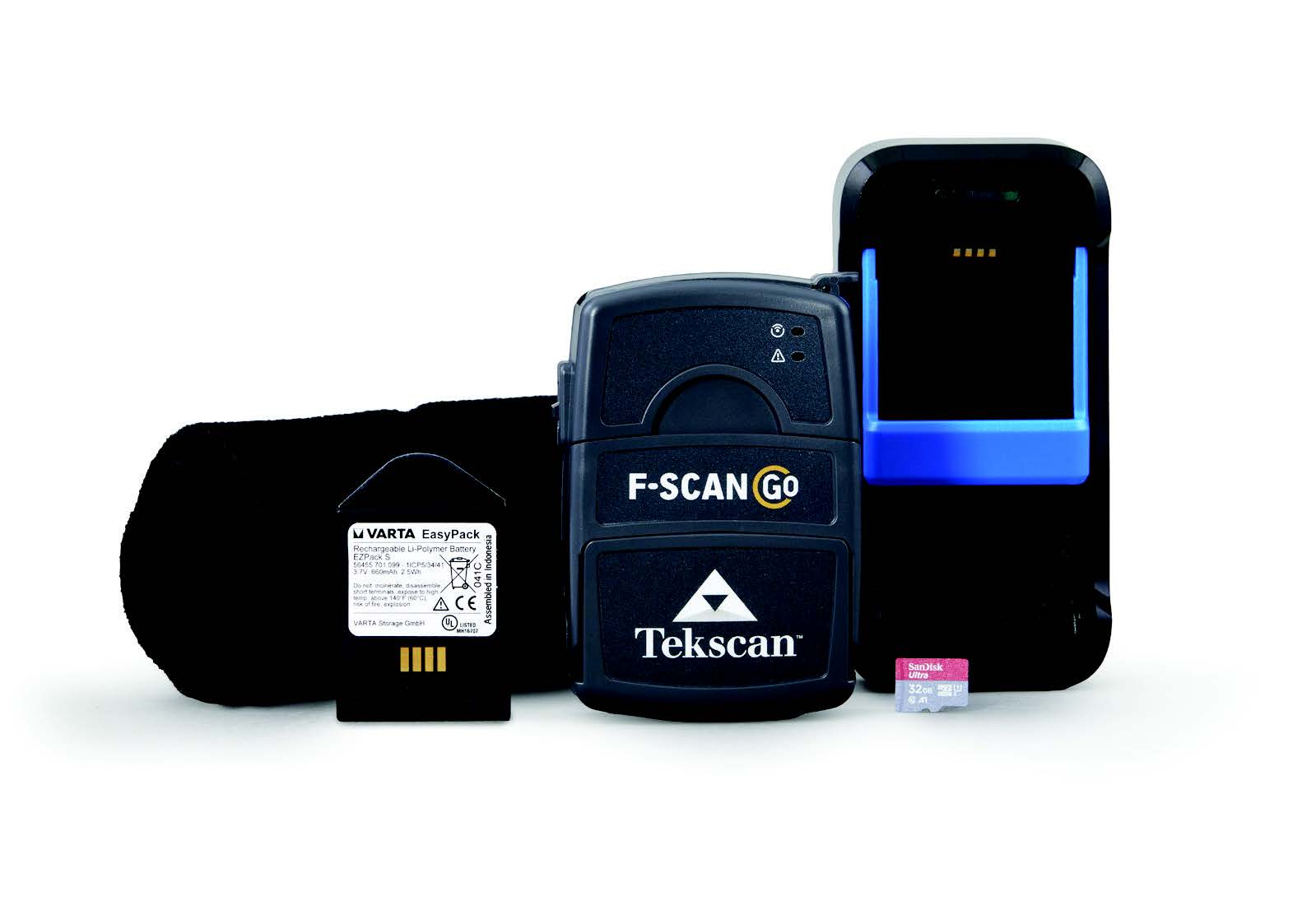

- Compact, lightweight electronics for natural gait analysis
- Onboard 32 GB storage expandable with Micro SD cards
The F-Scan GO System is the latest generation of in-shoe pressure measurement technology, offering cord-free, real-time gait analysis for clinicians and researchers. The system includes ultra-thin, high-resolution sensors and TekDAQ wearable Wi-Fi data acquisition units that allow for full freedom of movement during testing.

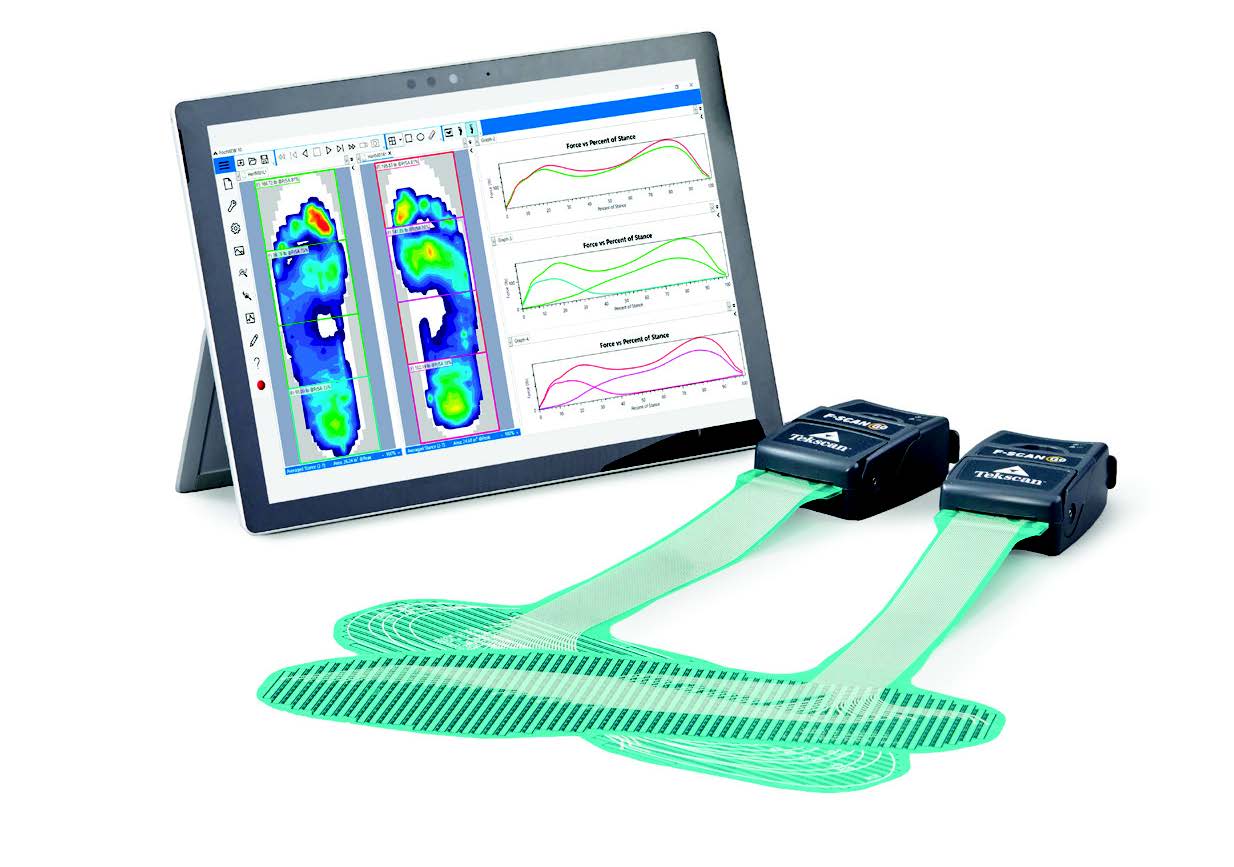

With embedded Wi-Fi data logging, the system transmits real-time pressure and force data to a PC while also storing data on onboard Micro SD cards. This ensures fast and uninterrupted data capture even in dynamic environments. The FootVIEW software enables live monitoring, calibration, and analysis, while the automated reporting tools provide detailed insights into foot pressure distribution, gait asymmetries, and post-intervention outcomes.

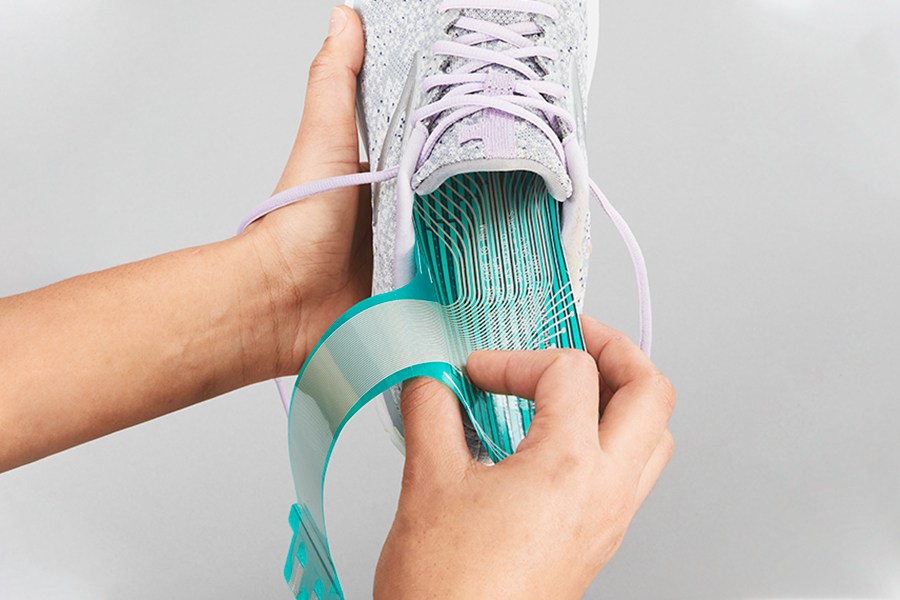

The F-Scan GO sensors are trimmable to fit any shoe or foot shape, ensuring precise and comfortable data collection. The system supports external synchronization with EMG and motion capture devices, making it a versatile tool for biomechanical research, rehabilitation, and sports performance evaluation.
Five Reasons to Choose F-Scan GO
- Best-in-Class Sensors – The highest-resolution, thinnest in-shoe sensors available, ensuring precise pressure and force data collection.

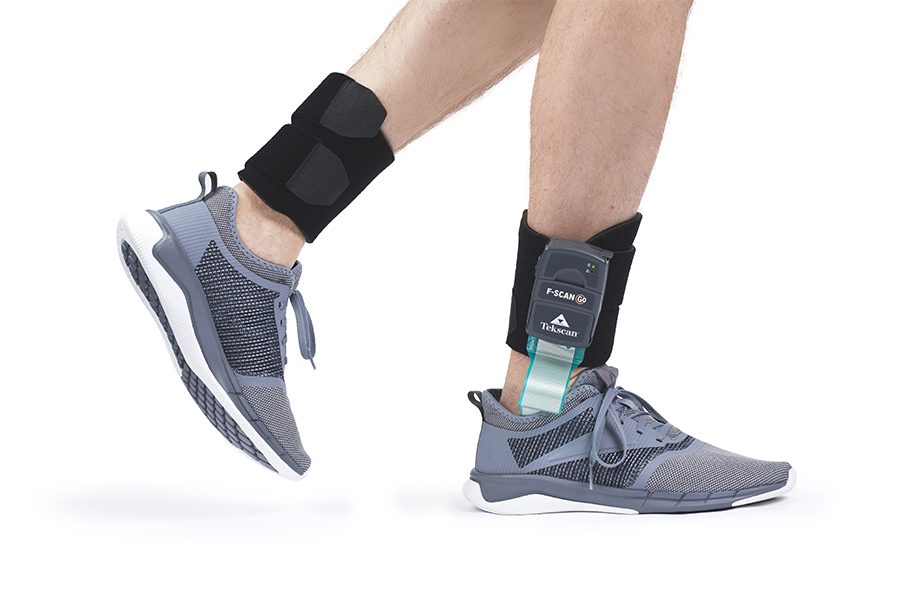

- Freedom of Movement – Lightweight, cord-free electronics with onboard storage allow for natural movement in any environment.

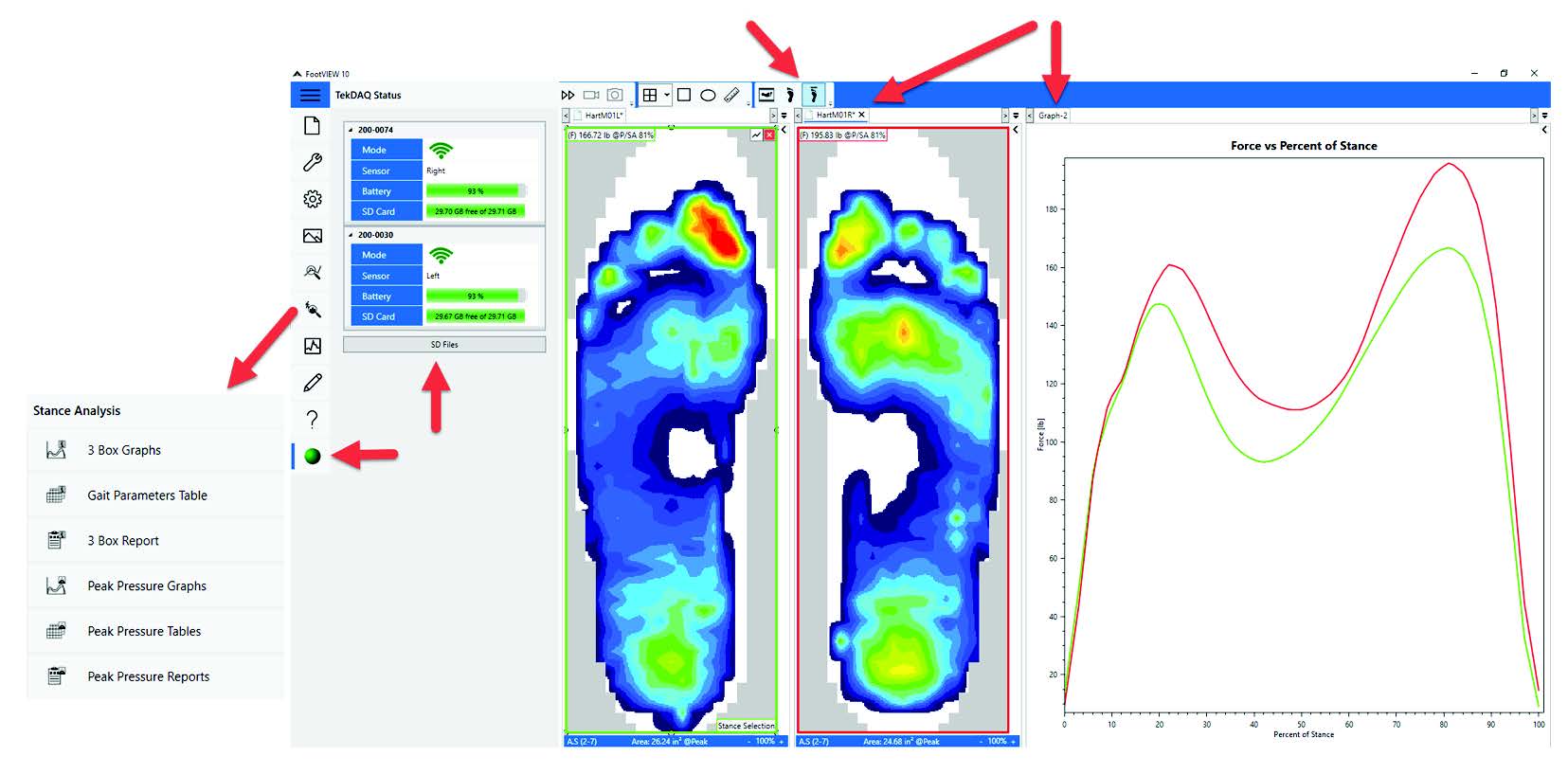

- Powerful Software Analysis – FootVIEW software provides an intuitive interface with real-time visualization and automated reporting.
- Unique Data Insights – High-resolution sensors enable in-depth analysis of peak pressures and foot segmentation for targeted evaluations.
- Versatile Applications – Suitable for clinical, research, rehabilitation, sports, and footwear testing, with easy integration into existing motion analysis systems.
- Clinical gait analysis to assess foot pressure distribution and movement asymmetries
- Orthotic and footwear design for optimizing support and comfort
- Sports performance evaluation for injury prevention and movement efficiency
- Rehabilitation and post-surgical recovery tracking
- Wound care and diabetic foot monitoring to prevent pressure-related complications
- Biomechanical research for detailed movement analysis
- Balance and postural control testing in neurological and musculoskeletal studies
- Pediatric gait assessment to evaluate developmental walking patterns
