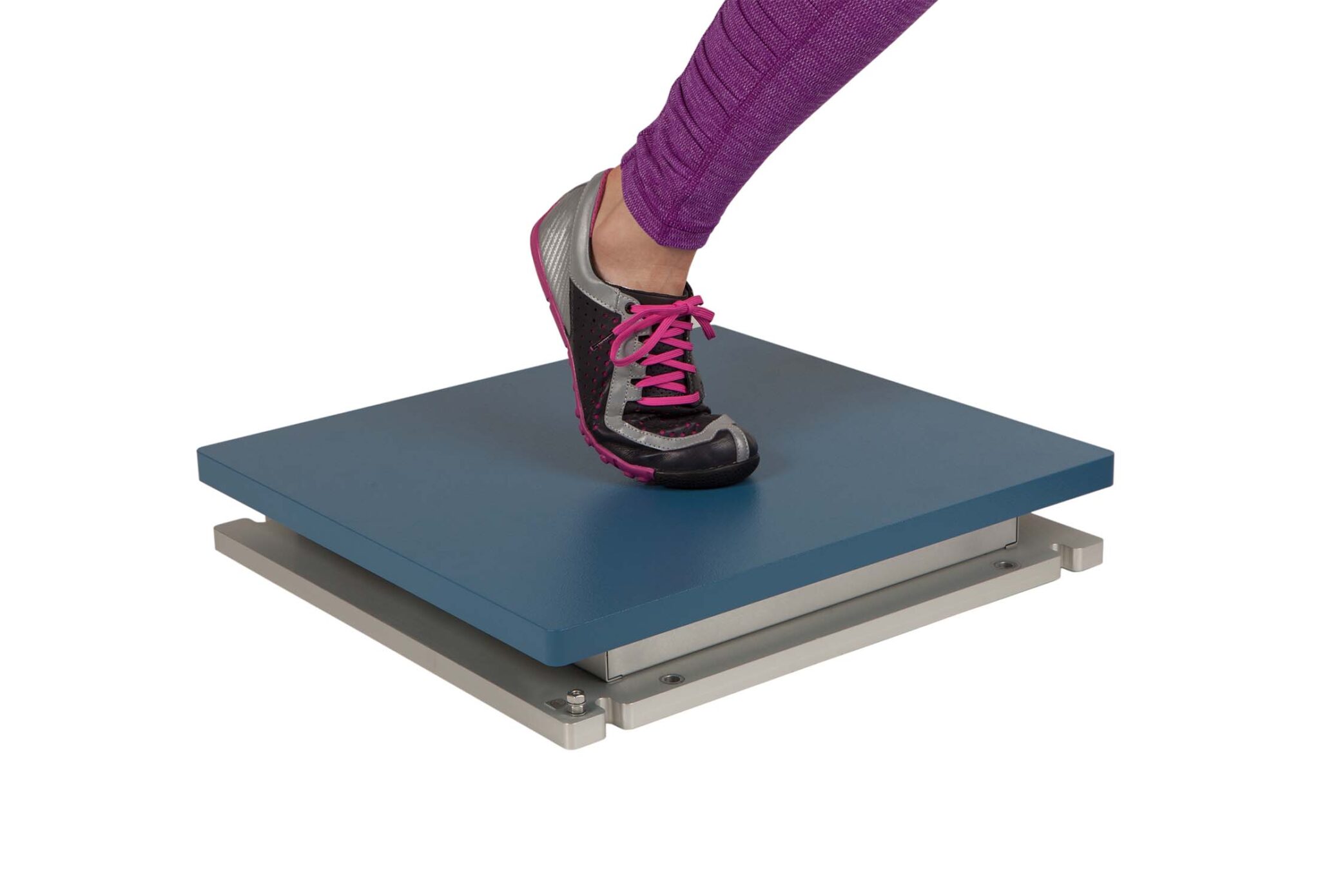

BMS464508HF, Composite Top Multi-Axis Force Platform
- Composite Top Design for improved dynamic response
- Optimized for clinical gait, pediatric motion, and biomechanical studies
- Dimensions: 464 mm × 508 mm
- Capacities: 4448 N and 8896 N (Fz)
- Multi-axis sensing: Fx, Fy, Fz, Mx, My, Mz
- Center of Pressure (COP) accuracy: <0.5 mm
- USB digital and analog output options

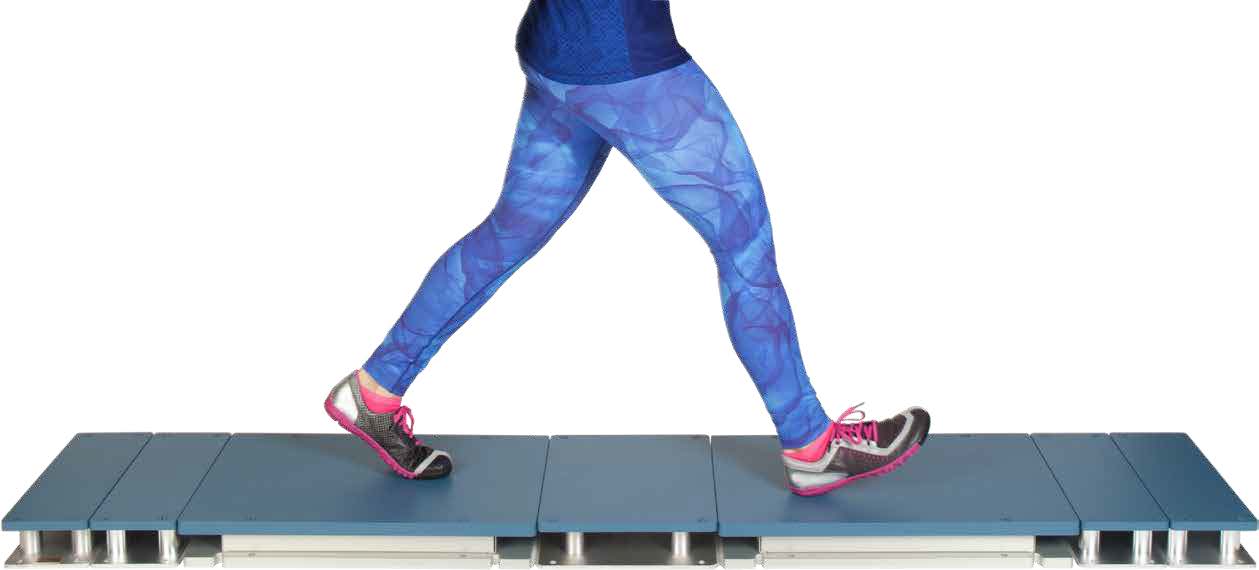

- Integrated with AMTI's OPT-SC amplifier and Modular Rail System
The BMS464508HF is an enhanced version of the standard BMS464508, equipped with a composite top plate to deliver a more rigid and responsive platform structure—ideal for high-fidelity kinetic measurements during gait and balance studies.
This model is part of AMTI’s OPTIMA-BMS Series, which applies the same patented OPTIMA calibration process used in the HPS line. That means it’s calibrated using up to 4000 precision-applied loads across a dense grid covering the entire surface, resulting in measurement accuracy and linearity far superior to conventional systems.
With full 6-axis measurement (Fx, Fy, Fz, Mx, My, Mz), typical COP error under 0.5 mm, and crosstalk below ±0.2%, the BMS464508HF is suitable for both adult and pediatric clinical assessments, sports performance labs, and academic biomechanics environments.
While not quite as precise as the HPS Series, this force plate offers best-in-class accuracy for its category, making it a cost-effective solution when extremely high spatial resolution and surface uniformity are required.
| Full Scale (Fz) | 1000 lbs |
| 2000 lbs | |
| 4000 lbs | |
| Fz Natural Frequency | 1000 Hz |
| Resolution | 16-bit |
| Dimensions | 464 x 508 x 83 mm |
| Weight | 40 lbs |
| Top Plate Material | Composite |
| Interface | USB |
| Min Temperature | -18 °C |
| Max Temperature | 50 °C |
-
Clinical gait and balance assessments
-
Pediatric and adult biomechanics research
-
Sports and rehabilitation studies
-
Lab setups requiring precise COP and low signal noise
-
Institutions needing high-end performance without HPS pricing
| BMS464508HF-1000 | Fz Range: 1000 lbs, Fz Freq.: 460 Hz |
| BMS464508HF -2000 | Fz Range: 2000 lbs, Fz Freq.: 500 Hz |
| BMS464508HF -4000 | Fz Range: 4000 lbs, Fz Freq.: 1000 Hz |
| OR6-7-OP | |
| OR6-6-OP |
AMTI Optima Brochure Brochure |
- Composite Top Design
- Highest-density calibration available on the market for exceptional precision
- Optimized for high-frequency testing in vibration-prone or dynamic environments
- Multi-axis sensing: Fx, Fy, Fz, Mx, My, Mz
- Dimensions: 464 mm × 508 mm
- Capacities: 4448 N and 8896 N (Fz)
- Compatible with AMTI’s Modular Rail System and OPT-SC amplifier
| Full Scale (Fz) | 1000 lbs, 2000 lbs |
| Fz Natural Frequency | 460 Hz, 500 Hz |
| Non-Linearity | ± 0.1 % FS |
| Resolution | 16-bit |
| Output | ± 5 V DC |
| Dimensions | 464 x 508 x 83 mm |
- Intuitive and easy to use
- State-of-the-art signal conditioning
- Average COP accuracy of just a fraction of a millimeter (typically less than 0.2)
- Crosstalk values typically ±0.05% of applied load
- Lightweight composite top plate improves dynamic response
- Fx/Fy and Fz natural frequencies elevated for high-speed analysis
- Calibrated with OPTIMA-HPS high-density process for uniform spatial accuracy
- Measures six components: Fx, Fy, Fz, Mx, My, Mz
| Full Scale (Fz) | 1000 lbs, 2000 lbs |
| Fz Natural Frequency | 780 Hz, 830 Hz |
| Non-Linearity | ± 0.1 % FS |
| Resolution | 16-bit |
| Output | ± 5 V DC |
| Dimensions | 400 x 600 x 83 mm |
- Composite top plate for enhanced stiffness and reduced weight
- High-frequency model for dynamic or vibration-sensitive environments
- Dimensions: 400 mm × 600 mm
- Optimized natural frequencies up to 830 Hz (Fz)
- Compatible with OPT-SC amplifier and digital/analog output
| Full Scale (Fz) | 1000 lbs, 2000 lbs |
| Fz Natural Frequency | 780 Hz, 830 Hz |
| Non-Linearity | ± 0.2 % FS |
| Output | ± 10 V DC |
| Dimensions | 400 x 600 x 83 mm |
| Weight | 40 lbs |
- Multi-axis measurements: Fx, Fy, Fz, Mx, My, Mz
- High sensitivity and low crosstalk
- Excellent repeatability and long-term calibration stability
- Available in Standard and High Frequency models

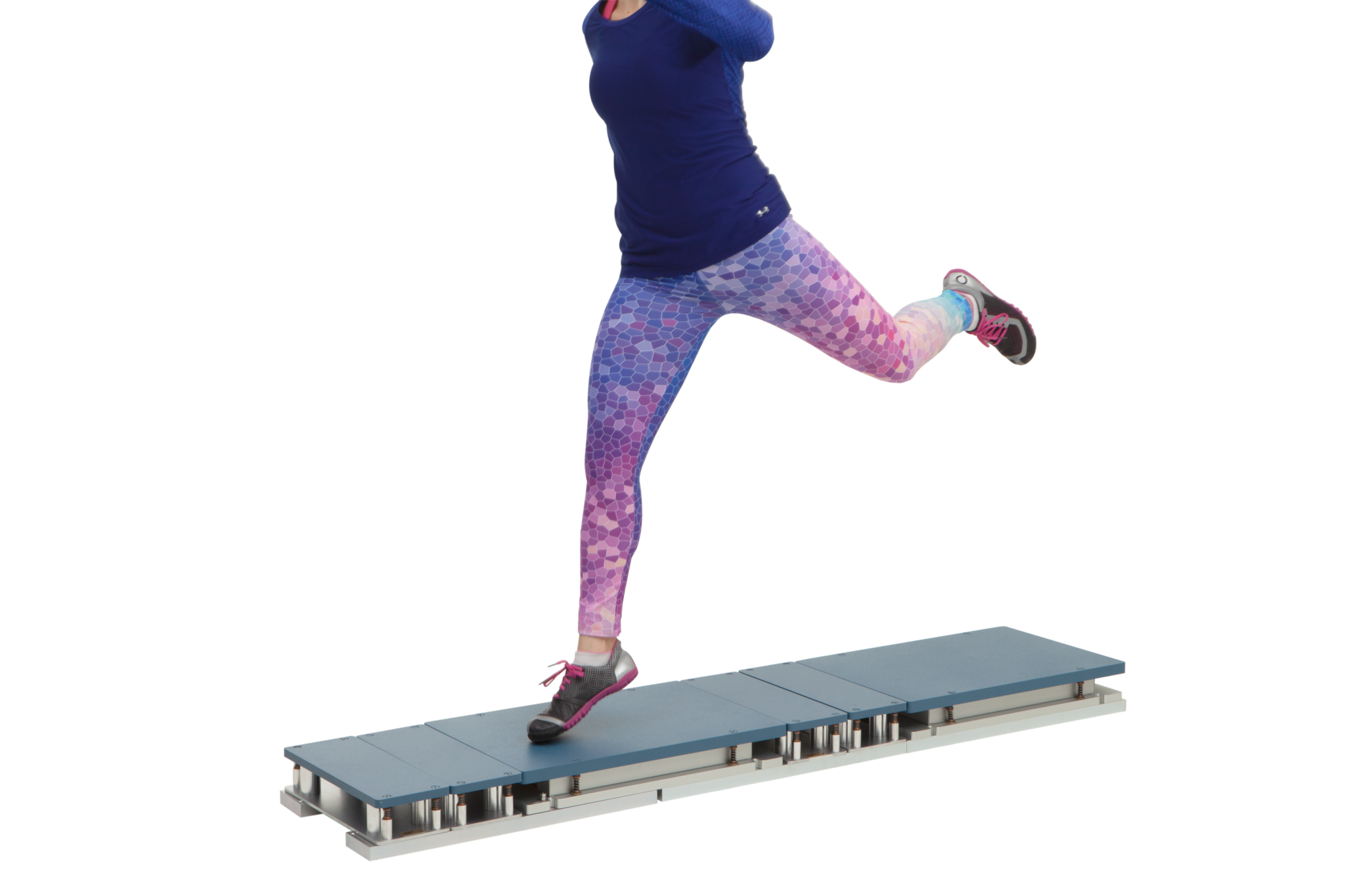

- Compatible with AMTI’s Modular Rail System for flexible installation
- Supplied with amplifier, cable, and mounting kit
- Built with OPTIMA technology for industry-leading accuracy
- IP-rated rugged construction suitable for clinical and research environments
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Fz Natural Frequency | 460 Hz, 500 Hz |
| Resolution | 16-bit |
| Dimensions | 464 x 508 x 83 mm |
| Weight | 62 lbs |
| Top Plate Material | Aluminum |
