SPS600900-GT, Glass Top Force Plate

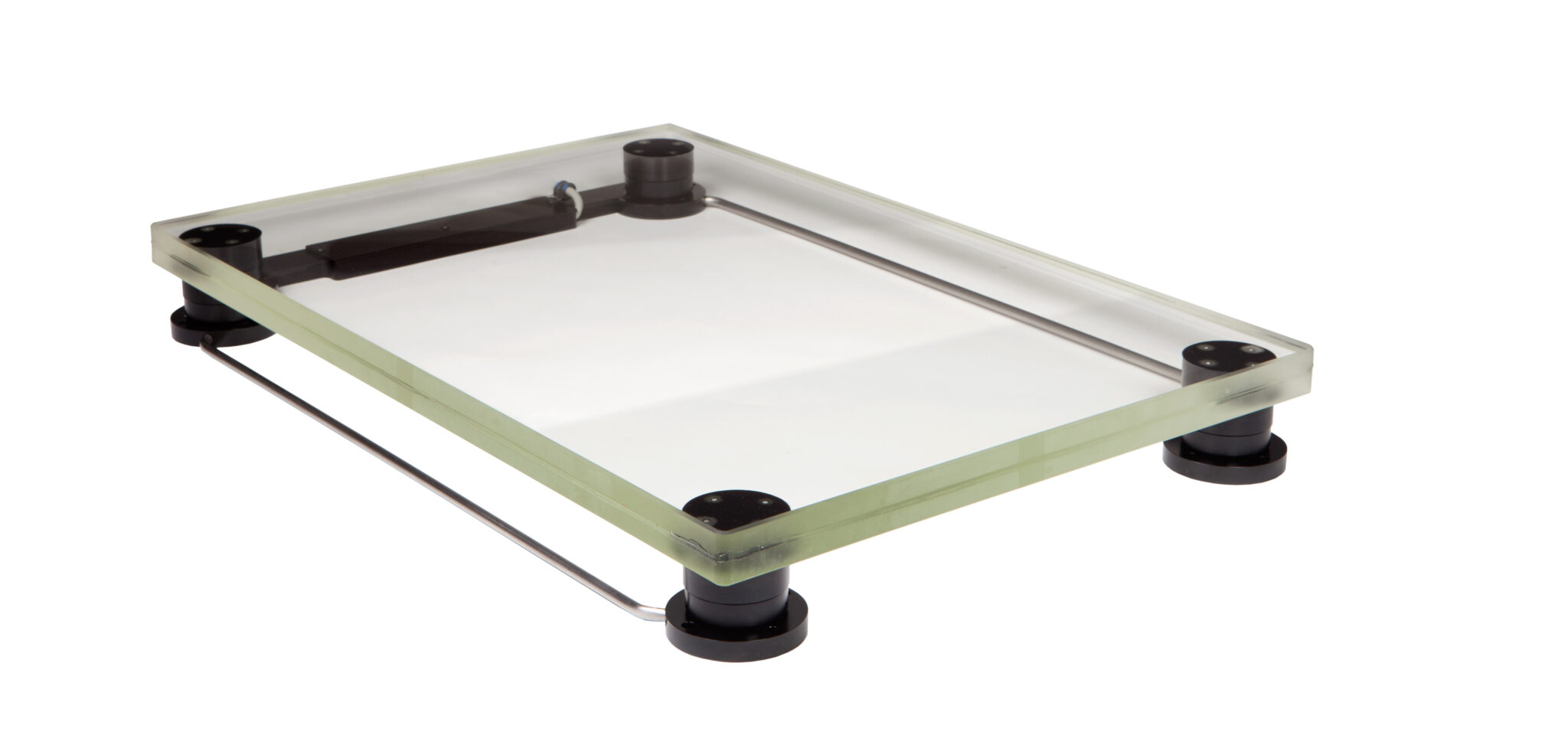

- Extra-large glass top: 600 mm × 900 mm, 40 mm thick

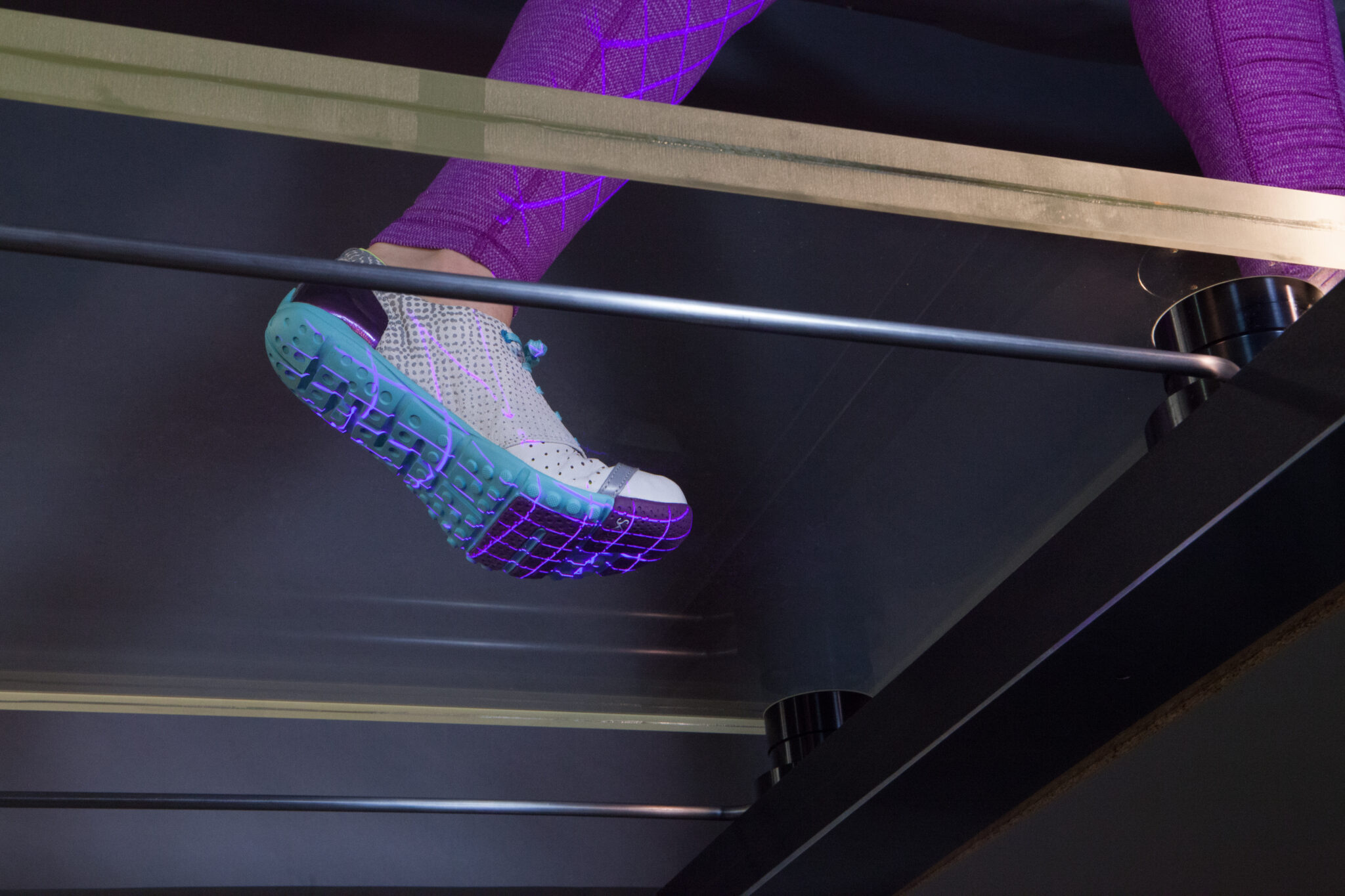

- Enables video capture from below the platform
- Measures Fx, Fy, Fz, Mx, My, Mz with strain gage technology
- COP accuracy: <0.5 mm
- High rigidity platform (52.5 kg) for stability during dynamic movements
- Output via USB (digital) or analog through GEN-5 amplifier
- Includes 30 ft. cable, amplifier, and complete mounting kit

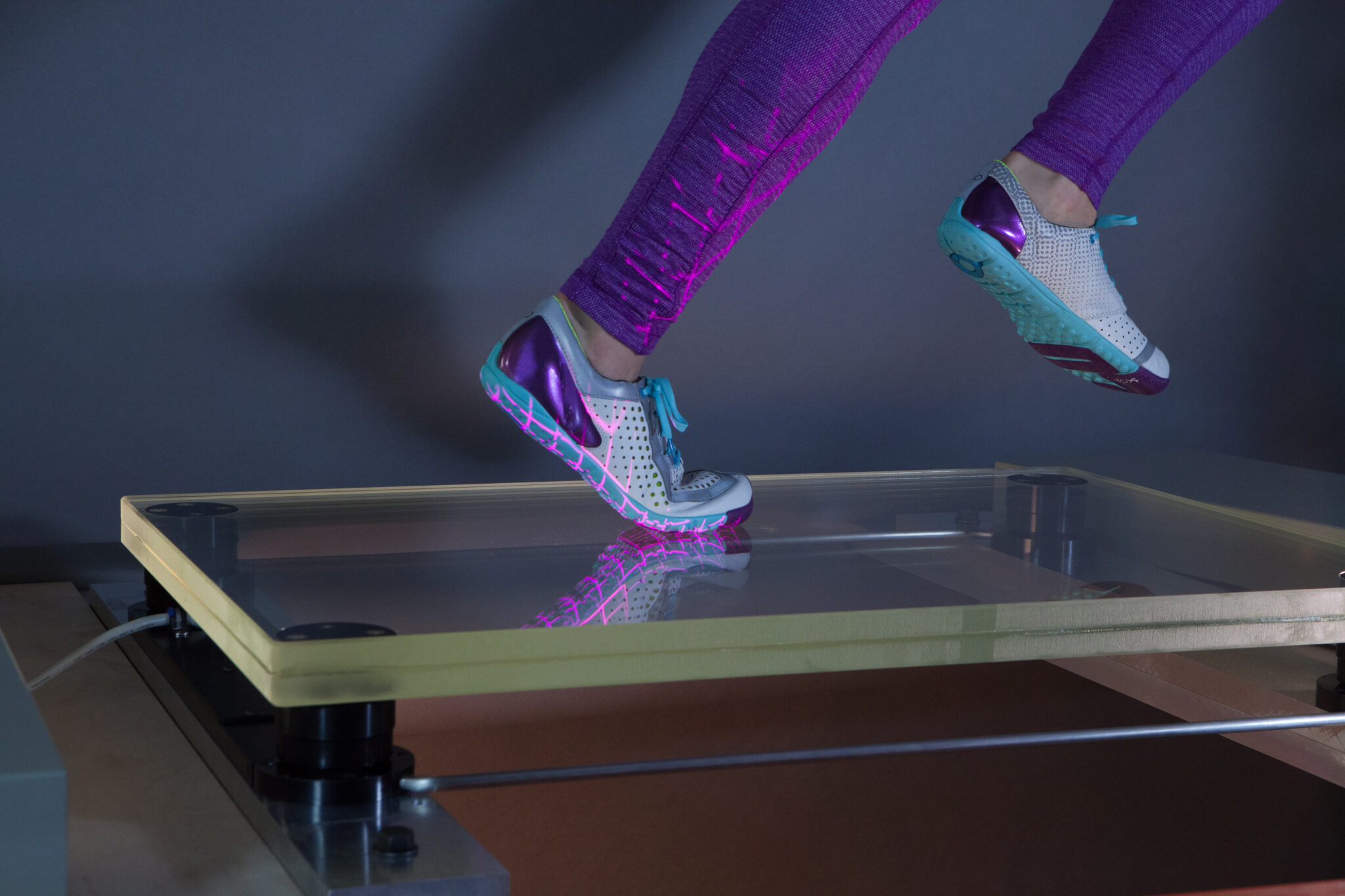

The SPS600900-GT is part of AMTI’s Special Purpose Series (SPS) and is designed specifically for footwear biomechanics, tread analysis, and sports research requiring both high-accuracy force data and visual documentation. Its key feature is a 40 mm thick transparent glass top that provides a clear view for synchronized underside imaging—a valuable tool for footwear testing and visual gait analysis.
With a COP accuracy under 0.5 mm, full 6-axis sensing, and a durable 52.5 kg construction, this model maintains precision even under dynamic, full-body movement. The large top surface makes it suitable for adult gait trials, athletic maneuvers, and comparative outsole studies.
It includes AMTI’s GEN-5 amplifier, 30-foot cabling, and full mounting accessories. Digital data can be streamed over USB or captured via analog outputs, depending on your system integration needs.
Full Scale (Fz) | 1000 lbs |
2000 lbs | |
Fz Natural Frequency | 250 Hz |
275 Hz | |
Non-Linearity | ± 0.2 % FS |
Resolution | 16-bit |
Output | ± 10 V DC |
Dimensions | 600 x 900 x 102 mm |
Weight | 115.5 lbs |
Top Plate Material | Glass |
Interface | USB |
Min Temperature | -18 °C |
Max Temperature | 50 °C |
-
Footwear and outsole pressure mapping
-
Sports and dynamic motion analysis
-
Visual gait analysis with synchronized force and video capture
-
Pediatric gait studies with full visual feedback
-
Research environments requiring extended platform size
