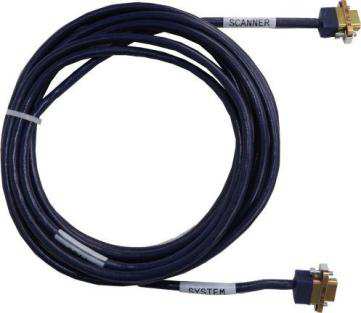

PSCB, Scanner Cable
The PSCB is a shielded, low-noise scanner cable for connecting ESP pressure scanners to DTC Initium or 8411 interface modules. Available in PVC or PTFE jackets and multiple lengths up to 150 feet.
Features:
- Molded Micro DB15 connectors with locking screws
- Multi-conductor cable with shielding for low-noise operation
- Available with PVC (standard) or PTFE (optional) jacket
- Lengths from 1 to 150 feet
- Pre-configured for direct connection between ESP scanners and interface modules
Manufacturer: TE CONNECTIVITY (TE)
Quote
Datasheet
Description
Models & Accessories
Downloads
PSCB - Description
The PSCB Scanner Cable is a pre-engineered interconnect solution designed for ESP pressure scanner systems. It ensures stable, noise-free communication between the scanner and interface devices such as the DTC Initium or 8411 modules. Each cable features Micro DB15 molded connectors with locking screws to ensure secure, vibration-resistant connections.
Available in PVC jacketed (standard) or PTFE jacketed (optional) versions, the PSCB cable is built to endure demanding environments. Shielding across the entire length of the cable minimizes electrical noise, ensuring reliable sensor data transmission. Lengths are available from 1 ft up to 150 ft, making it adaptable for lab setups or field installations.
PSCB - Models & Accessories
Models
| PSCB-0000500000 | PVC Jacket – 5 ft |
| PSCB-0001000000 | PVC Jacket – 10 ft |
| PSCB-0001500000 | PVC Jacket – 15 ft |
| PSCB-0003000000 | PVC Jacket – 30 ft |
| PSCB-0005000000 | PVC Jacket – 50 ft |
| PSCB-0010000000 | PVC Jacket – 100 ft |
| PSCB-0015000000 | PVC Jacket – 150 ft |
| PSCB-1000500000 | PTFE Jacket – 5 ft |
| PSCB-1001000000 | PTFE Jacket – 10 ft |
| PSCB-1001500000 | PTFE Jacket – 15 ft |
| PSCB-1003000000 | PTFE Jacket – 30 ft |
| PSCB-1005000000 | PTFE Jacket – 50 ft |
| PSCB-1010000000 | PTFE Jacket – 100 ft |
| PSCB-1015000000 | PTFE Jacket – 150 ft |
PSCB - Downloads
PSCB Cable Datasheet |
