2416, Ethernet Intelligent Pressure Scanner
- 16-channel high-accuracy digital pressure scanner
- Accuracy up to ±0.02% FS, 24-bit resolution per channel
- 1 kHz per channel acquisition rate
- Integrated 3-position electric shuttle valve (Run-Cal-Purge)
- Measures and controls purge pressure internally
- Ethernet output (TCP/IP, UDP) with PTPv2 time stamping
- Supports Chell, IENA, NetScanner, and optional DDS/iDDS protocols
- Fully configurable via embedded web server
- Power-over-Ethernet or DC (smart sensing)
- IP67 sealed enclosure with quick-disconnect or compression fittings
- Vibration and shock qualified to DO160 standards

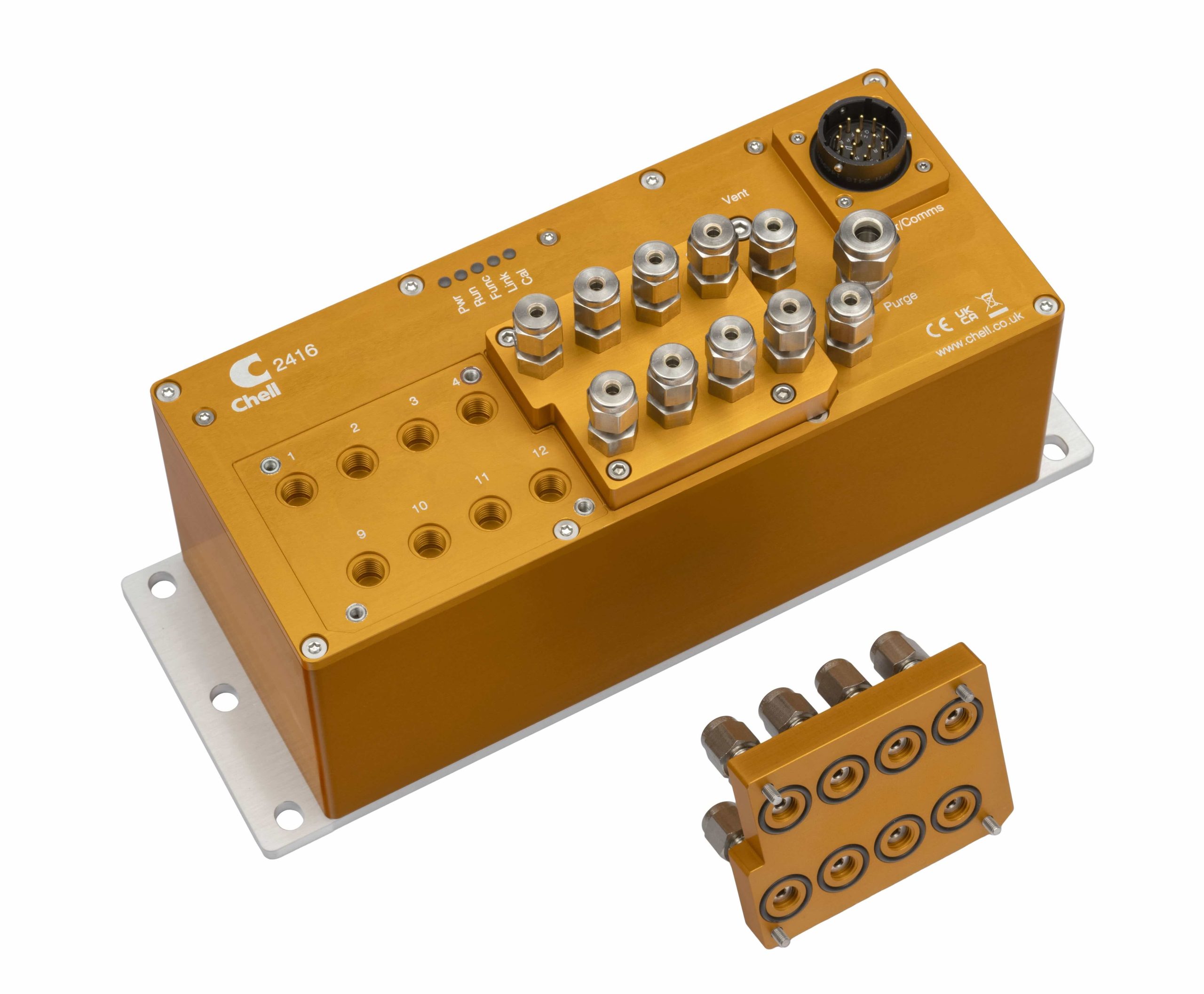

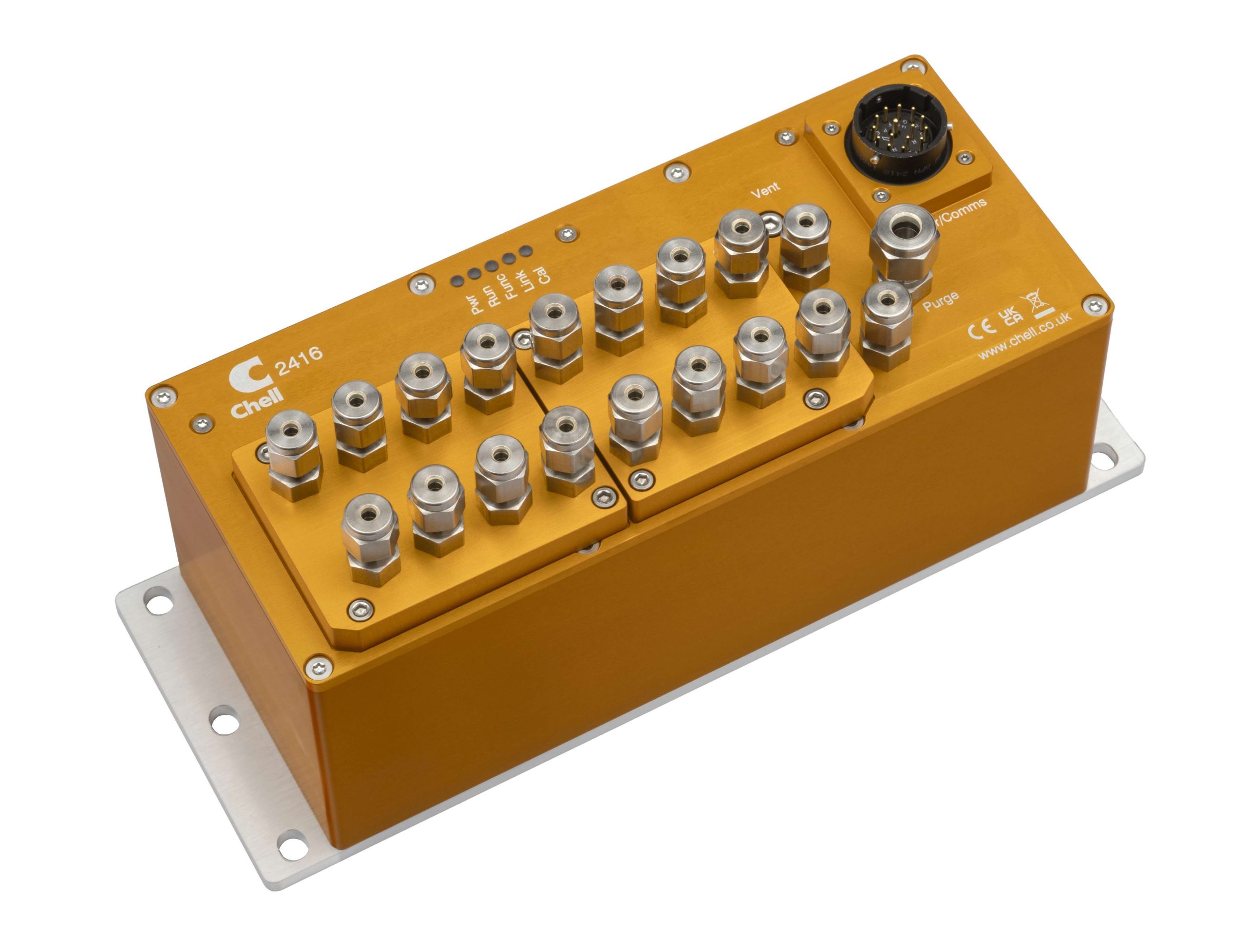

The 2416 is a high-performance industrial pressure scanner from Chell Instruments, offering precision measurement and digital intelligence in a rugged, compact platform. Each of the 16 pressure inputs uses high-resolution, temperature-compensated digital transducers, providing accurate pressure and temperature data processed through proprietary compensation algorithms.
The system includes a three-position electrically actuated shuttle valve—capable of Run, Cal, and Purge modes—eliminating the need for external high-pressure supply lines and enabling automatic zeroing and system purging. The valve also measures purge pressure, logs usage cycles, and supports maintenance planning with positional feedback.
Pressure data is output in engineering units via Ethernet (TCP/UDP) using Chell’s native protocol, IENA, NetScanner emulation, or optional DDS/iDDS interfaces. The system supports IEEE 1588 PTPv2 time stamping, making it suitable for synchronized DAQ applications.
Compatible with a wide range of pressure ranges (from ±1 kPa to ±7000 kPa), and equipped with configurable measurement port options (QDC, compression fittings, or tubulations), the 2416 is ideal for demanding applications including wind tunnel instrumentation, aerospace test stands, and automotive development.
| Type | Distributed |
| Number of Channels | 16 |
| Operational Mode | Absolute |
| Differential | |
| Full-Scale | 0.15 psi |
| 0.4 psi | |
| 0.7 psi | |
| 1 psi | |
| 2.5 psi | |
| 5 psi | |
| 15 psi | |
| 30 psi | |
| 45 psi | |
| 100 psi | |
| 150 psi | |
| 400 psi | |
| 750 psi | |
| 1015 psi | |
| Output Interface | Ethernet |
| Sample Rate | 1,000 Hz per channel |
| 2416-0510010101 | ±5 psi range, compression fittings, MIL-DTL connector, O-ring boss, Ethernet output (Chell + IENA) |
| 2416-3002030302 | ±725 psi range, AS205 QDC fittings, circular connector, QDC service ports, Ethernet with NetScanner emulation |
| 2416-1501030103 | ±100 psi range, compression ports, MIL connector, O-ring boss, with iDDS support |
| 2416-0150010301 | ±2.5 psi range, compression fittings, MIL connector, QDC service ports, Chell + IENA protocols |
2416 chell datasheet Datasheet |
- Pneumatic Intelligent Differential Pressure Scanner
- Dry Noncorrosive Gases
- Proof Pressure 3 Times Rated Pressure (< 15 psi)
- Proof Pressure 2 Times Rated Pressure (15 - 100 psi)
- Proof Pressure 1.5 Times Rated Pressure (> 100 psi)
- 16 Pressure Sensors from 10WC up to 850 psi
- 0.063" Tubulation & Compression Fittings Available
| Type | Distributed |
| Number of Channels | 16 |
| Operational Mode | Differential |
| Full-Scale | 1 psi, 2.5 psi, 5 psi, 10 psi, 15 psi, 30 psi, 45 psi, 100 psi, 250 psi, 500 psi, 750 psi, 850 psi |
| Output Interface | Ethernet |
| Precision | ±0.05 % FS |
