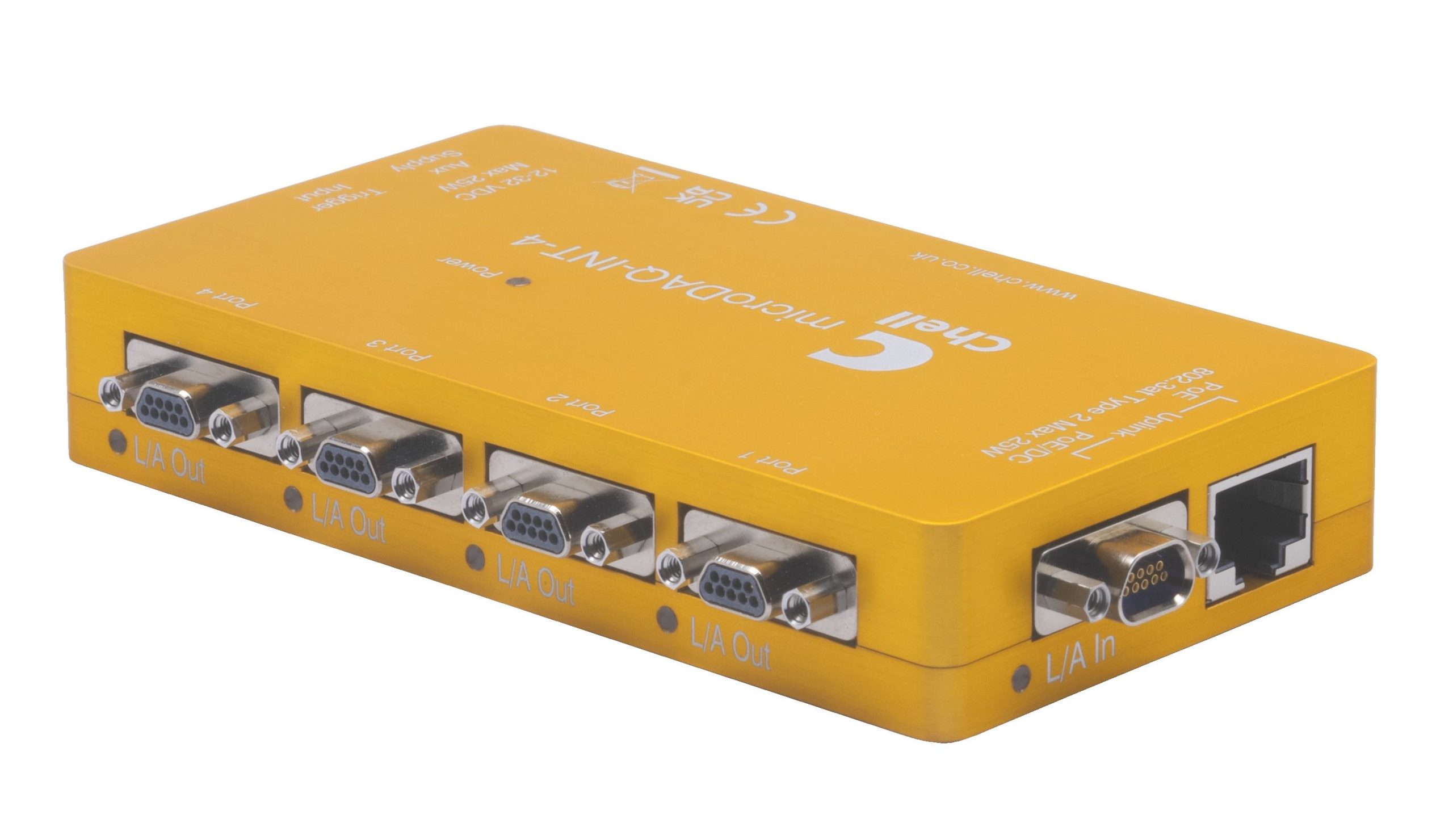

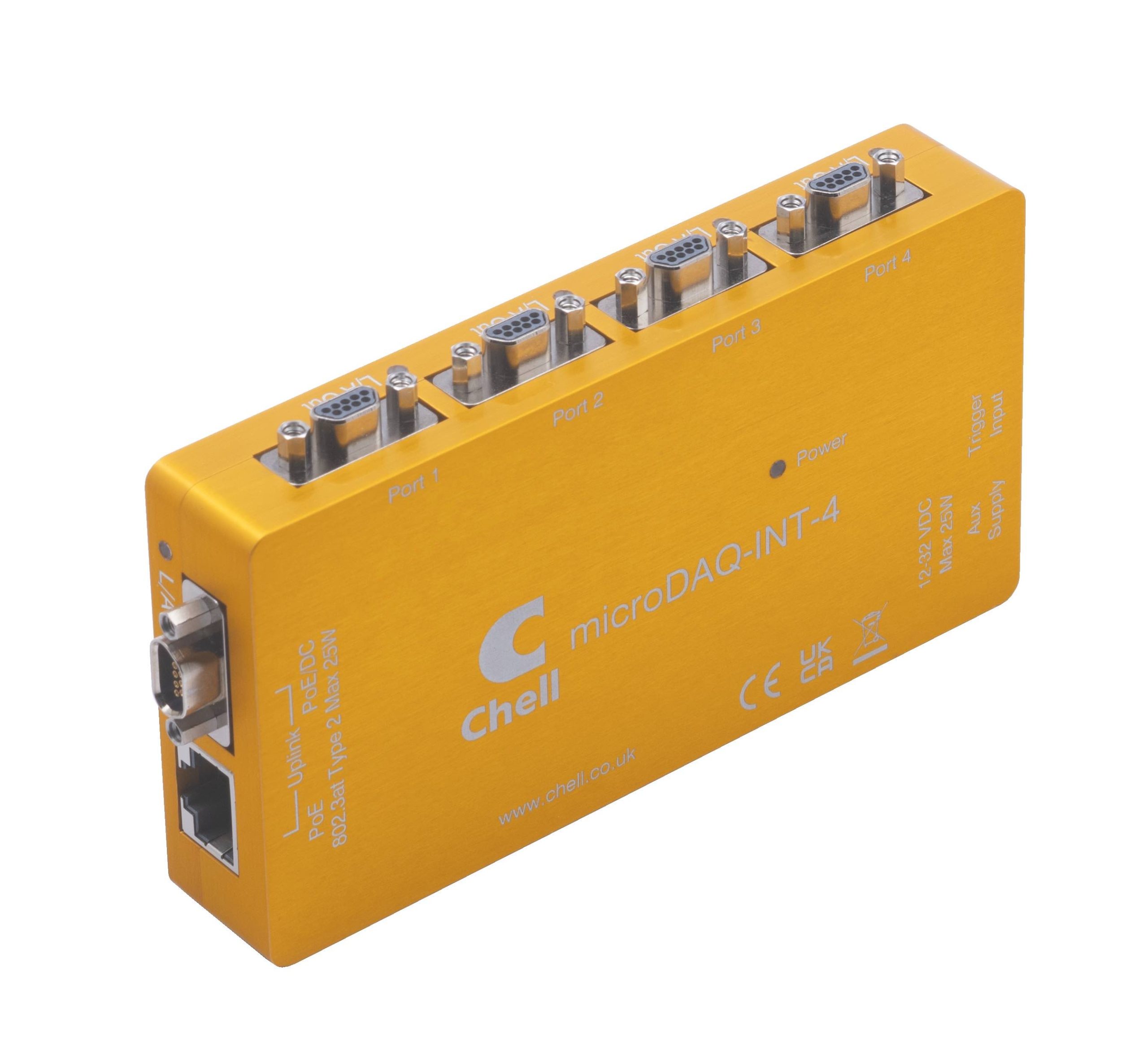

microDAQ-INT-4, Interface, hub and power supply
The microDAQ-INT-4 is a versatile 4-way power supply and hub designed to streamline connectivity and power management for Chell's microDAQ and nanoDAQ scanners, suitable for both in-lab and on-vehicle applications.
Features:
- Supports connection of up to 4 microDAQ or nanoDAQ scanners.
- Integrated power supply with options for DC or PoE.
- Built-in unmanaged Ethernet and CAN hub for streamlined communication.
- Compact and rugged design with IP54 enclosure suitable for harsh environments.
- Features RJ45 and DC jack connectors for versatile benchtop or field deployment.
- Ensures precise timing with IEEE 1588 PTPv2 compatibility.
Manufacturer: Chell Instruments
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
microDAQ-INT-4 - Description
The microDAQ-INT-4 enhances data acquisition setups by serving as a central hub that connects up to four scanners via Ethernet or CAN interfaces. It simplifies power distribution by supporting both DC power and Power-over-Ethernet (PoE), allowing devices to be powered through a single PoE-enabled Ethernet connection. This unit is particularly beneficial in applications where space and power sources are limited, such as wind tunnels or mobile testing environments. The microDAQ-INT-4 also features built-in CAN and Ethernet hubs, a hardware-triggered input, and compatibility with IEEE PTPv2 for precise time synchronization, making it an essential component for high-performance data acquisition systems.
Schematic
Dimensions
microDAQ-INT-4 - Specifications
| Type | Digital |
| Number of Scanners | 4 |
| Output Interface | Ethernet |
| Sample Rate | 3000 Hz per channel |
| Excitation | 12 - 30 V DC |
microDAQ-INT-4 - Models & Accessories
Models
| microDAQ-INT-4-01 | Base model without plug-in DC power supply |
| microDAQ-INT-4-02 | Supplied with DC wall adapter and IEC power cable |
microDAQ-INT-4 - Downloads
MicroDAQINT4-Data-Sheet-ATI Datasheet |
