microDAQ-INT, Interface for MicroDaq and nanoDAQ
- Provides Ethernet, CAN, and hardware trigger access for MicroDAQ/nanoDAQ systems
- Models available for 1, 2, or 8 scanner connections
- Built-in DC power supply for each channel
- Standardized connectors for Ethernet (RJ45), CAN (D-type), and Trigger (BNC)
- Compact enclosure for field or benchtop use (INT, INT-2)
- 19” 1U rackmount version available (INT-8)
- Compatible with MicroDAQ2, MicroDAQ3, nanoDAQ, nanoDAQ-LT
The MicroDAQ-INT interface range is designed to simplify system integration for Chell's MicroDAQ, nanoDAQ, and nanoDAQ-LT product families. Available in three configurations—MicroDAQ-INT (1-port), MicroDAQ-INT-2 (2-port), and MicroDAQ-INT-8 (8-port rackmount)—these interfaces provide streamlined access to Ethernet, CAN (where supported), and hardware triggering in test environments.
Each unit includes power supply connectors and scanner cables to ensure proper communication and power delivery. The MicroDAQ-INT and INT-2 are compact modules ideal for portable setups, while the INT-8 is a rackmount solution designed for large-scale multi-channel deployments.
These interfaces use MicroDAQ-CAB or nanoDAQ-CAB cables depending on the connected device type, and feature standard RJ45, D-type, and BNC connectors for clean integration with existing data acquisition setups.

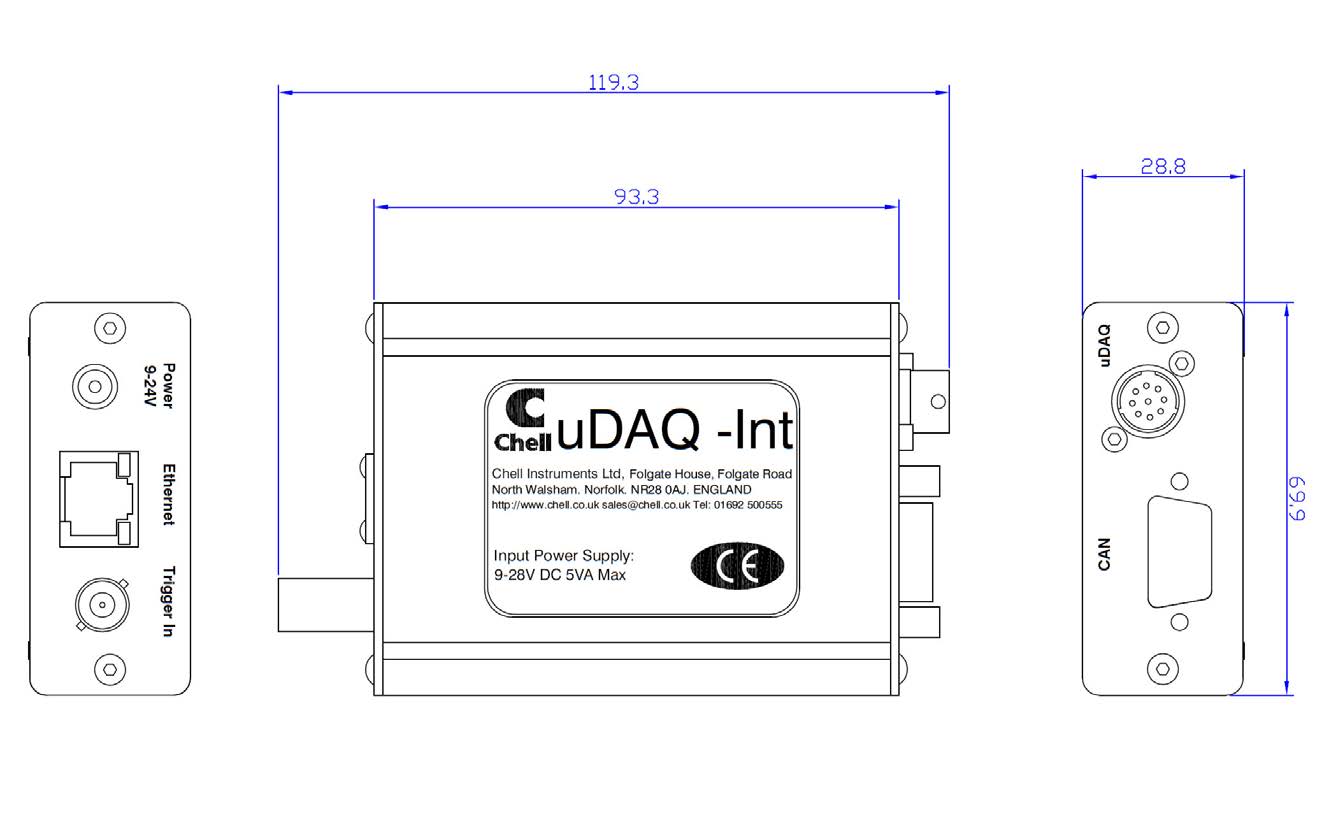

Dimensions (MicroDAQ-INT and MicroDAQ-INT2)
| Type | Digital |
| Number of Scanners | 1 |
| 2 | |
| 8 | |
| Output Interface | Ethernet |
| CAN | |
| Sample Rate | 3000 Hz per channel |

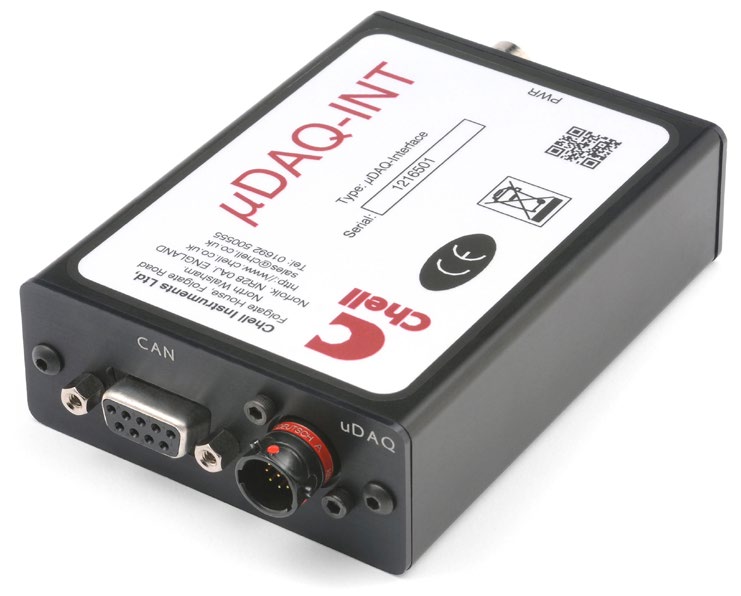

| MicroDAQ-INT | 1-port interface with CAN and trigger |

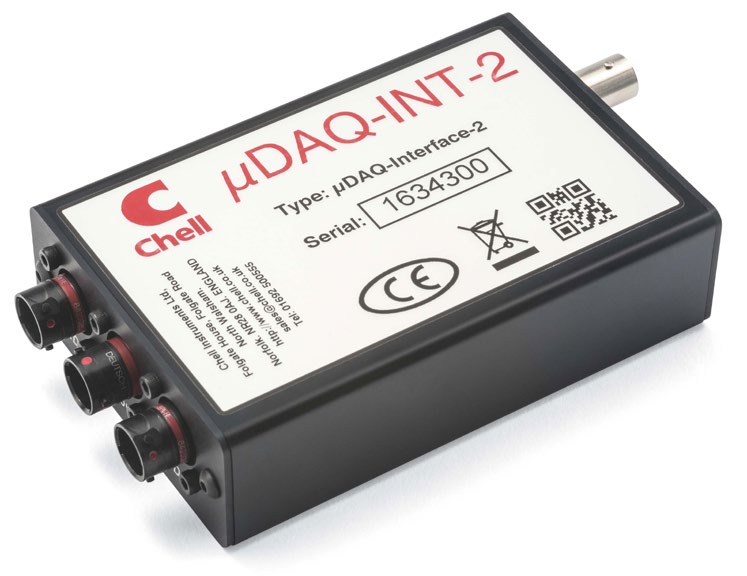

| MicroDAQ-INT-2 | 2-port interface, Ethernet and trigger only |

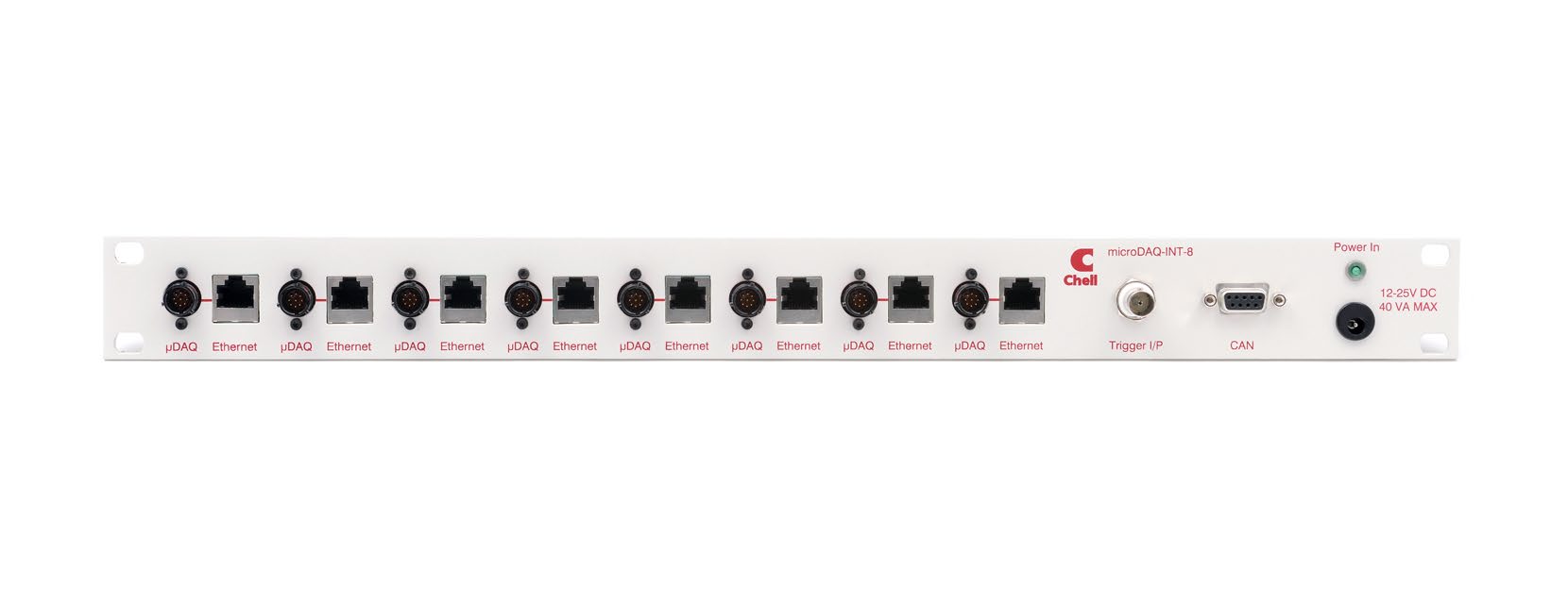

| MicroDAQ-INT-8 | 8-port rackmount interface with Ethernet, CAN, trigger |
MicroDAQ-INT-Data-Sheet Datasheet |
