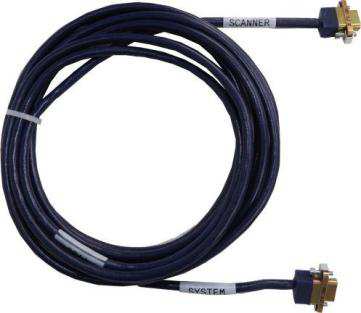

PSCB, Pressure Scanner Cable
- Molded Micro DB15 connectors with locking screws
- Shielded multi-conductor cable for low-noise performance
- Choice of PVC (standard) or PTFE (optional) jacket materials
- Lengths from 1 to 150 feet
- Compatible with ESP pressure scanners and DTC Initium / 8411 interfaces
- Designed for high-reliability data transfer in test environments
The PSCB Scanner Cable is a pre-engineered, multi-conductor cable designed for use with ESP pressure scanners. It provides a reliable, low-noise signal path from the scanner to compatible interfaces such as the DTC Initium or 8411.
Each PSCB cable features molded Micro DB15 connectors with locking screws for secure attachment and long-term durability. The cable construction includes shielded wiring to minimize noise and interference in high-speed measurement environments. Standard models come with a PVC jacket, while PTFE options are available for higher temperature or chemically demanding applications.
Lengths are available from 1 ft to 150 ft, allowing flexibility for both compact setups and larger distributed scanner systems.

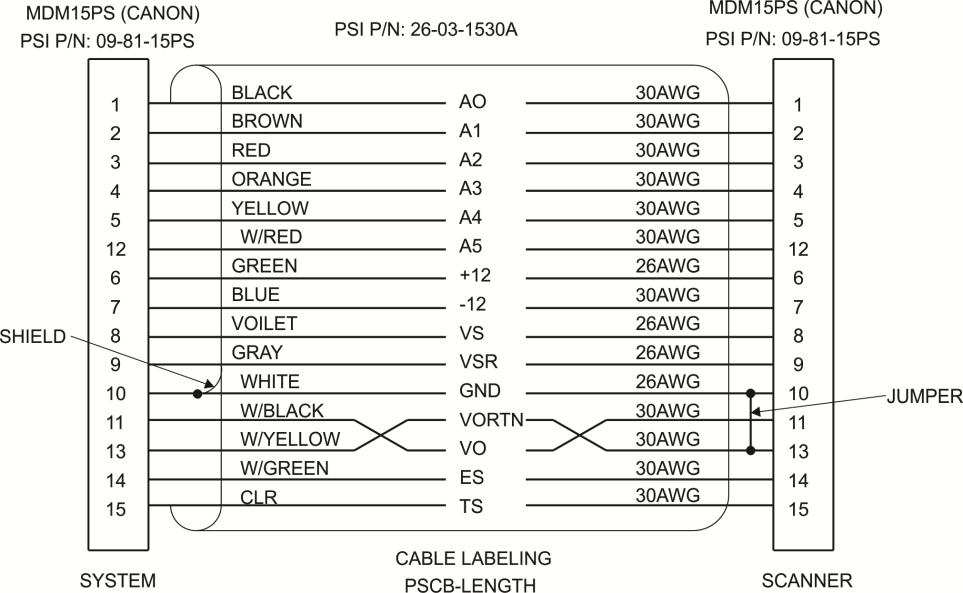

Wiring Diagram
| PSCB-0000500000 | PVC Jacket – 5 ft |
| PSCB-0001000000 | PVC Jacket – 10 ft |
| PSCB-0001500000 | PVC Jacket – 15 ft |
| PSCB-0003000000 | PVC Jacket – 30 ft |
| PSCB-0005000000 | PVC Jacket – 50 ft |
| PSCB-0010000000 | PVC Jacket – 100 ft |
| PSCB-0015000000 | PVC Jacket – 150 ft |
| PSCB-1000500000 | PTFE Jacket – 5 ft |
| PSCB-1001000000 | PTFE Jacket – 10 ft |
| PSCB-1001500000 | PTFE Jacket – 15 ft |
| PSCB-1003000000 | PTFE Jacket – 30 ft |
| PSCB-1005000000 | PTFE Jacket – 50 ft |
| PSCB-1010000000 | PTFE Jacket – 100 ft |
| PSCB-1015000000 | PTFE Jacket – 150 ft |
PSCB Cable Datasheet |
