EGCS-D5, Shock Accelerometer
- DC Response, Critically Damped
- ±5g to ±10,000g Dynamic Range
- Rugged Design, Integral Strain Relief
- Fluid Damped, Over-Range Stops
- Temperature Compensated
- -40°C to +100°C Operating Range
- Full Bridge Design
- Linearity <1%
- 10,000g Shock Protection
- 2–15Vdc Excitation, <3% Transverse Sensitivity
The EGCS-D5 is a rugged, fluid-damped piezoresistive shock accelerometer designed for extreme impact and dynamic test environments. Engineered with a full bridge strain gage configuration, it provides DC response with critical damping, ensuring accurate signal fidelity even under rapid shock events. The sensor is available in a wide dynamic range from ±50g up to ±10,000g, and includes mechanical over-range stops capable of withstanding shocks up to 20,000g.
With its IP65-rated epoxy-sealed stainless steel housing, the EGCS-D5 is ideal for high-impact applications such as metal-to-metal impact, weapons testing, automotive crash testing, and heavy construction environments. It features a flat frequency response up to 10kHz (when paired with an inline amplifier), excellent linearity (<1%), and low transverse sensitivity (<3%). Internal temperature compensation and a wide operating range of -40°C to +120°C ensure performance stability in harsh conditions. An optional inline amplifier (Model 145) provides a 30x gain and 20kHz low-pass filtering for high-g range measurements.

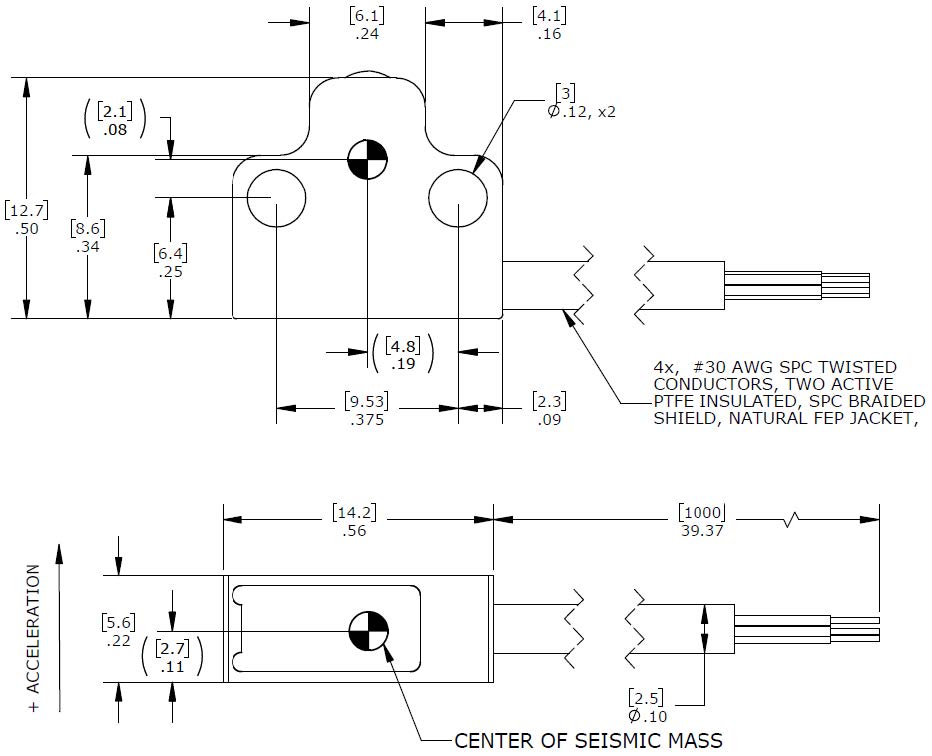

Dimensions
3.jpeg?1750173360505)
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 50 g |
| 100 g | |
| 250 g | |
| 500 g | |
| 1000 g | |
| 2500 g | |
| 5000 g | |
| 10000 g | |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
| EGCS-D5-50 | 50g range, standard 15V excitation, 1m cable |
| EGCS-D5-100 | 100g range, standard 15V excitation, 1m cable |
| EGCS-D5-250 | 250g range, standard 15V excitation, 1m cable |
| EGCS-D5-500 | 500g range, standard 15V excitation, 1m cable |
| EGCS-D5-1000 | 1000g range, standard 15V excitation, 1m cable |
| EGCS-D5-2500 | 2500g range, standard 15V excitation, 1m cable |
| EGCS-D5-5000 | 5000g range, standard 15V excitation, 1m cable |
| EGCS-D5-10000 | 10000g range, standard 15V excitation, 1m cable |
| EGCS-D5-1000-/V10 | 1000g range, calibrated at 10Vdc excitation, 1m cable |
| EGCS-D5-10000-/V10/145 | 10000g range, 10V excitation, inline amplifier module |
| EGCS-D5-5000-/L5M/145 | 5000g range, 5-meter cable, inline amplifier module |
| EGCS-D5-500-/145 | 500g range, inline amplifier module, 1m cable |
EGCS-D5 Datasheet Datasheet |
- DC Response, Critically Damped
- ±5g to ±10,000g Dynamic Range
- Rugged Design, Integral Strain Relief
- Fluid Damped, Over-Range Stops
- Temperature Compensated
- -40°C to +100°C Operating Range
- Full Bridge Design
- Linearity <1%
| Type | DC Response |
| # of Axis | 1 |
| Full Scale | 5 g, 10 g, 25 g, 50 g, 100 g, 250 g, 500 g, 1000 g, 2500 g, 5000 g, 10000 g |
| Excitation | 2 - 15 V DC |
| Min Temperature | -40 °C |
| Max Temperature | 120 °C |
